Lewmar - DC1 Rope Clutches
Lewmar - DC1 Rope ClutchesLewmar - DC1 Rope ClutchesLewmar - DC1 Rope Clutches

Lewmar - DC1 Rope Clutches

Lewmar
  (1 Review)



Manufacturer #:  29101108BK

£82.99    (Inc. UK VAT @ 20%)RRP:  £93.01Save:  £10.02 (11%)(£69.16 Exc. VAT)

Lewmar continues to define rope clutch technology with a variable geometry handle and unique grip pattern of dominos that prevent rope fray. This revolutionary system has been independently tested time and again and has won awards for its innovative framework.

Instead of just jamming the rope, the domino mechanism flexes it for better grip and reduced rope wear.

Line entry and exit angle should not exceed 15° from the rope clutch centre line.

Use pan head M6 fixings, do not tighten beyond 10Nm torque.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
*
*
Please add the two numbers

Average Rating (1 Review):
Write a Review and share your opinions!

Rating:
Excellent value for money
14 March 2017  |

Particularly like the progressive release. And Sea Teach service and delivery made it almost a pleasure to spend the money!

Was this helpful to you?  Yes  /  No

This review has not been appraised.

Product Information

Lewmar DC1 Clutch Specifications

Clutch Line Size Holding Load Length Height Width Weight WLL

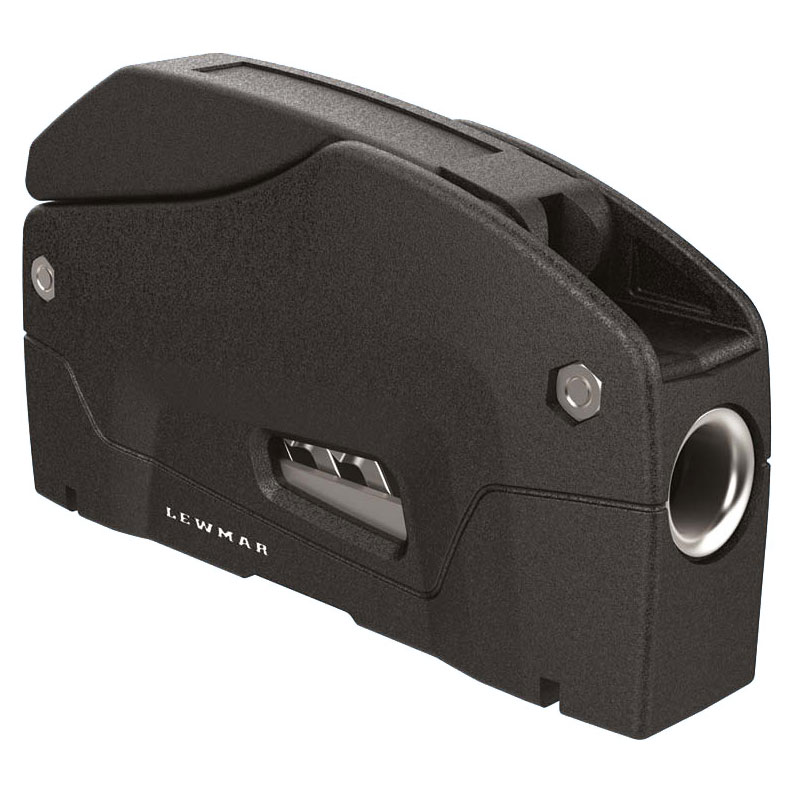

DC1 Single 6-8mm
8-10mm
10-12mm
300kg 126mm 72mm 32mm 330g 500kg

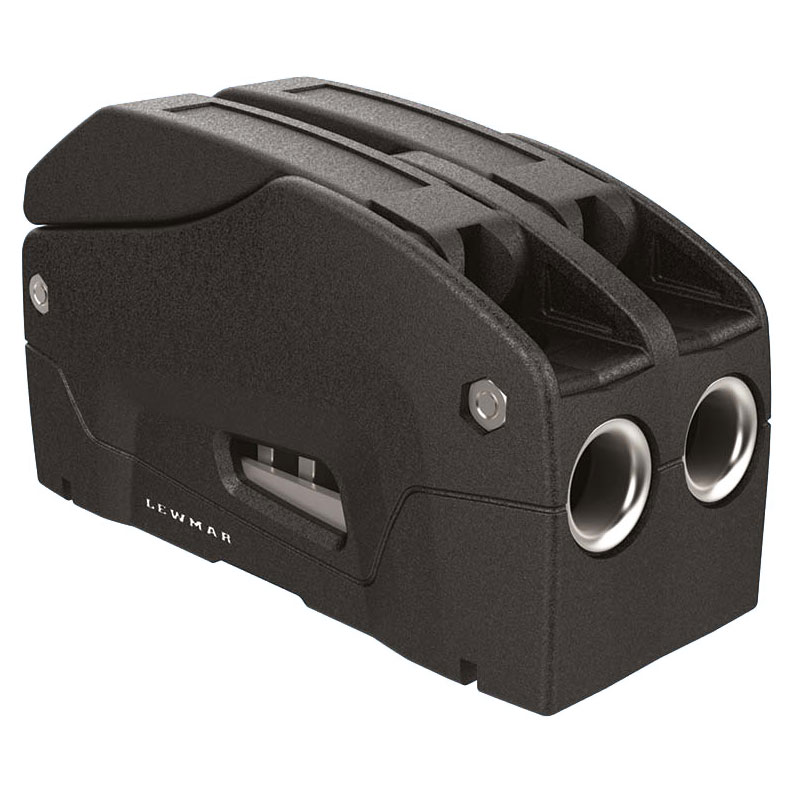

DC1 Double 6-8mm
8-10mm
10-12mm
400kg 126mm 72mm 57.85mm 650g 500kg

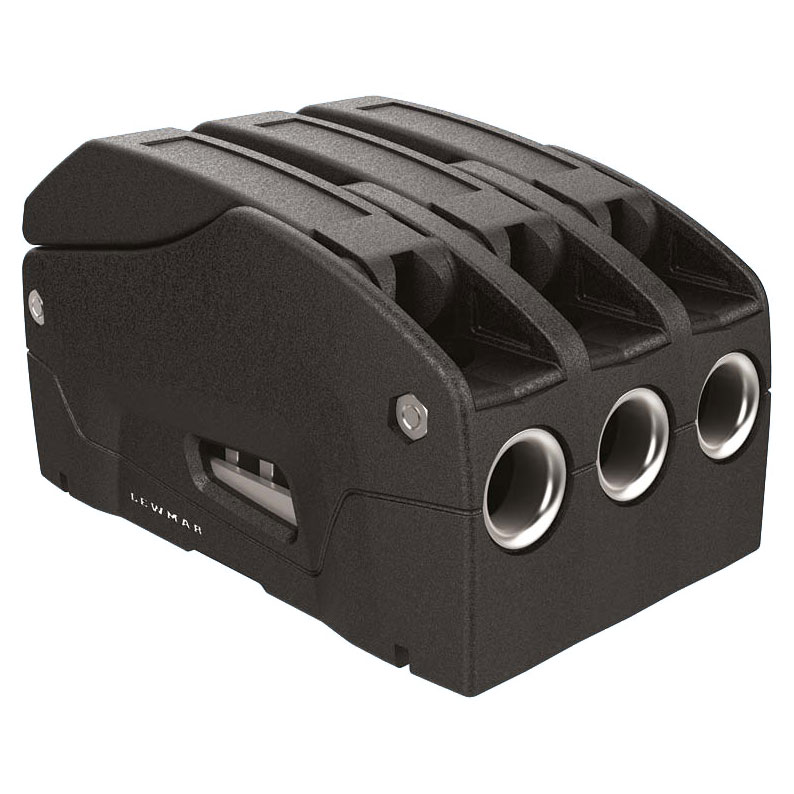

DC1 Triple 6-8mm
8-10mm
10-12mm
500kg 126mm 72mm 83.70mm 850g 500kg


Why Lewmar DC Clutches?

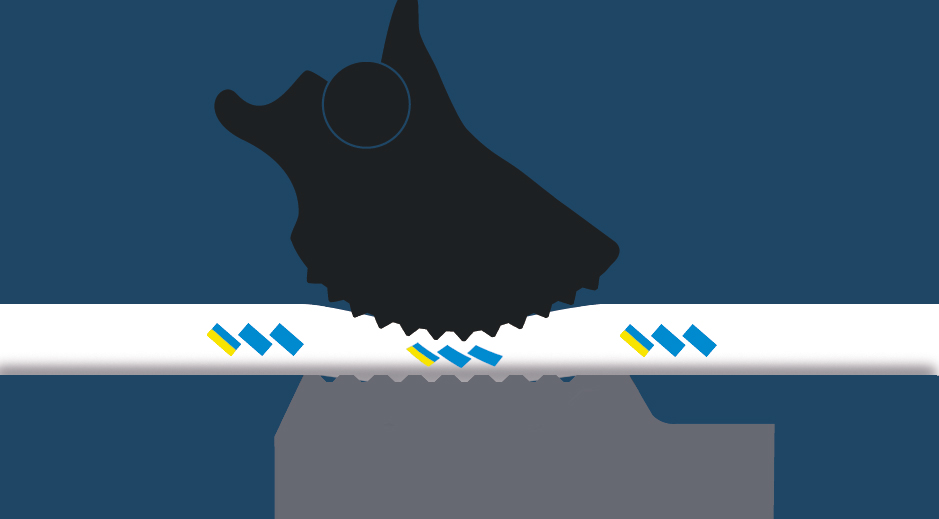

Instead of just jamming the rope...

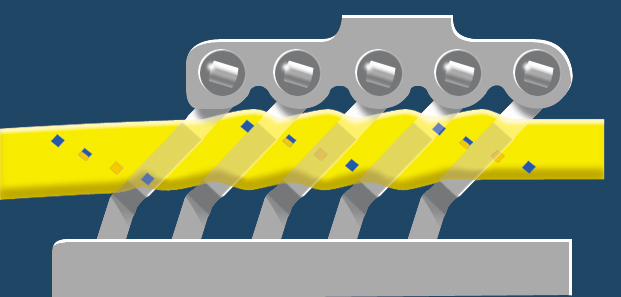

...Lewmar's Domino Mechanism flexes it for better grip and less rope wear.

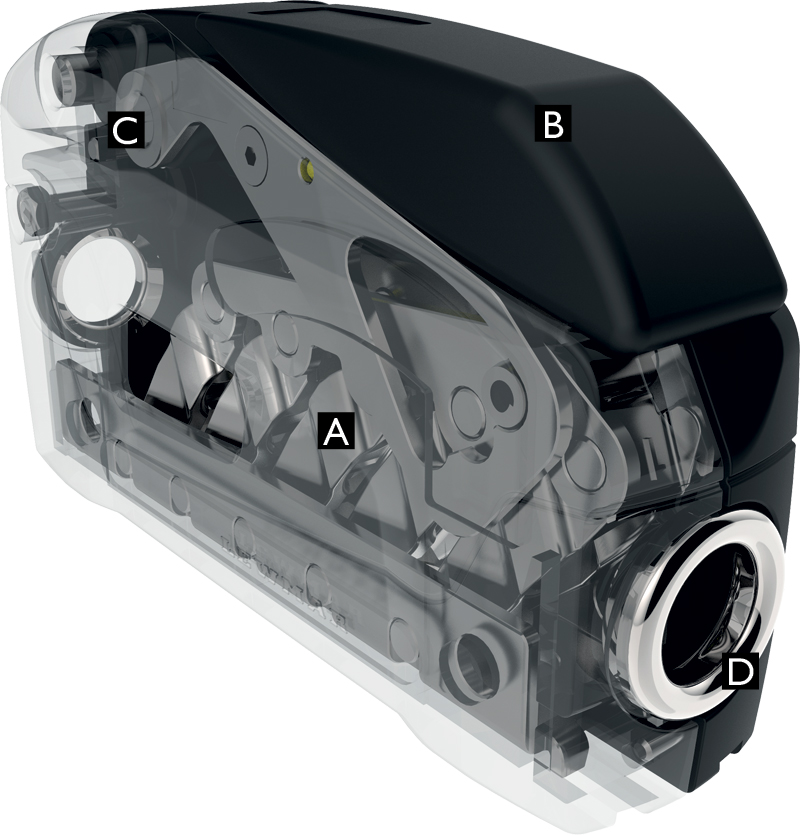

  A   - Domino Cluster and longer holding pattern holds line under load without fraying the rope

  B   - Controlled Release – Pull back handle combined with patented clutch and release mechanism provides controlled release even at full holding load

  C   - Handle has a solid link to the domino cluster

  D   - Line Size – Clutches capable of holding lines from 6mm (1∕4”) to 14mm (9∕16”)

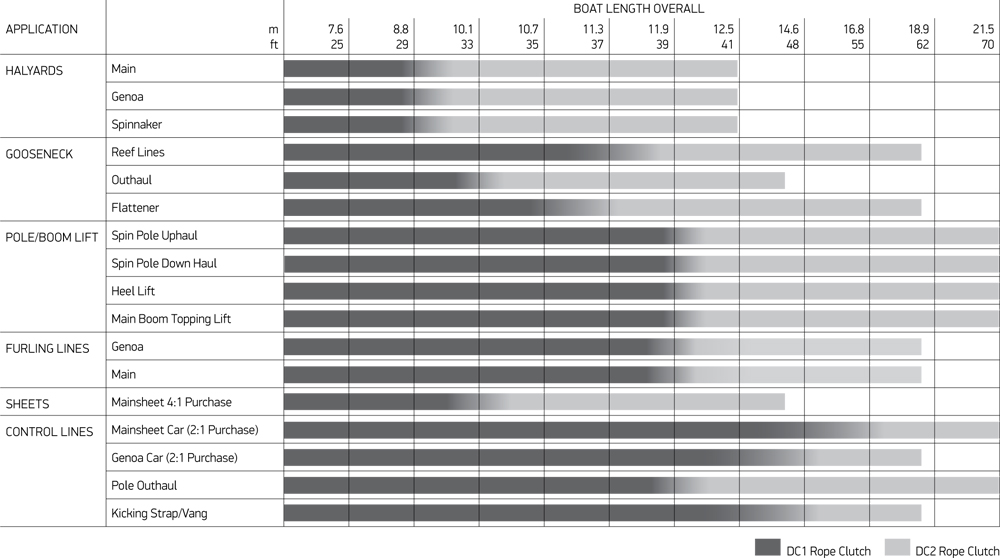

Lewmar Clutch Selection Guide
