Lewmar - Low Profile Hatch Seals

Lewmar - Low Profile Hatch Seals

Lewmar

Hatch size:

Article Number:  360860999

Price:  £45.99(Inc. VAT @ 20%)
–+

Replacement seals for Lewmar's Low Profile hatches. Supplied as a complete loop.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:

Average Rating (3 Reviews):
Write a Review and share your opinions!
Rating:
Lewmar Hatch Seals
Friday, 10 February 2017  |

The product is OK . However the oud seals lose their flexibility after 15 years and start leaking..
Replacement is really a pain in the ass, compared to for instance the seals of GEBO hats he's.
The enclosed instructions are very helpful.

Was this helpful to you?  Yes  /  No

This review has not been appraised.

Rating:
excellent
Monday, 12 December 2016  |

the person I spoke to was very helpful and informative which resulted in my replacing the hatch seal at a reasonable cost

Was this helpful to you?  Yes  /  No

This review has not been appraised.

Rating:
Couldn't be happier
Monday, 1 August 2016  |

My box of seals arrived in Australia 6 days after ordering, good communications from you all the yay... Thanks

Was this helpful to you?  Yes  /  No

This review has not been appraised.

Low Profile Hatch Specifications

Size Style Overall Size

Cut-Out Size
Width (Y) Height (X) Depth (Z) Radius (R) Width (Y1) Height (X1) Radius (R1)
00 Square 281mm 281mm 25mm 72.5mm 211mm 211mm 42.5mm
03 Rectangular 301mm 246mm 25mm 72.5mm 231mm 176mm 42.5mm
10 Square 330mm 330mm 25mm 72.5mm 260mm 260mm 42.5mm
18 Circular 490mm Ø 25mm n/a 420mm Ø n/a
20 Rectangular 417mm 272mm 25mm 72.5mm 347mm 202mm 42.5mm
22 Circular 588mm Ø 25mm n/a 518mm Ø n/a
30 Rectangular 527mm 397mm 25mm 72.5mm 457mm 327mm 42.5mm
40 Square 491mm 491mm 25mm 72.5mm 421mm 421mm 42.5mm
41 Rectangular 491mm 246mm 25mm 72.5mm 421mm 176mm 42.5mm
44 Square 512mm 512mm 25mm 72.5mm 442mm 442mm 42.5mm
50 Rectangular 577mm 447mm 25mm 72.5mm 507mm 377mm 42.5mm
51 'D' hatch 588mm 448mm 25mm 72.5mm 518mm 378mm 42.5mm
54 Rectangular 577mm 467mm 25mm 72.5mm 507mm 392mm 42.5mm
60 Square 577mm 577mm 25mm 72.5mm 507mm 507mm 42.5mm
64 'D' hatch 500mm 600mm 25mm 72.5mm 430mm 530mm 42.5mm
65 Trapezoid   25mm See above

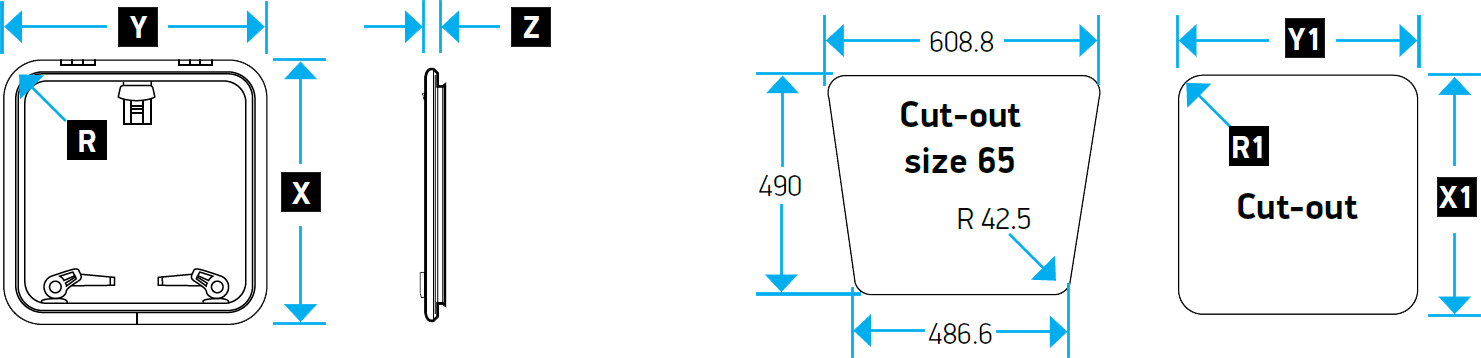

Low Profile Hatch Relative Shapes and Sizes
