Lewmar - Low Profile Replacement Hatch Lids

Lewmar - Low Profile Replacement Hatch Lids
 Lewmar - Low Profile Replacement Hatch LidsLewmar - Low Profile Replacement Hatch Lids

Lewmar

Low Profile:
Lid type:
Acrylic colour:

Manufacturer #:  361110000

Price:  £180.99(Inc. VAT @ 20%)
+

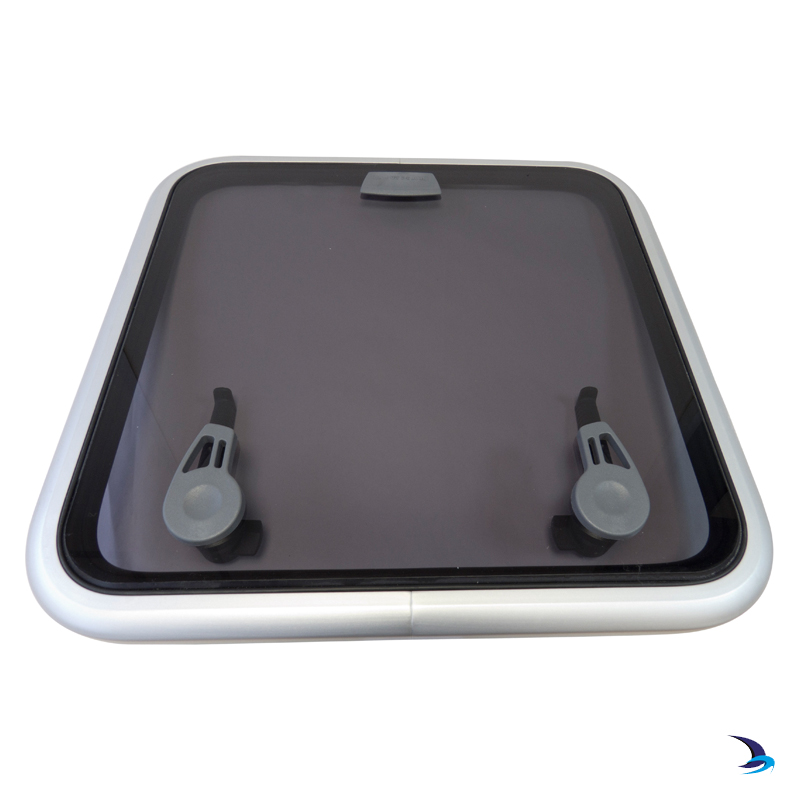

Replacement lids for the Lewmar Low Profile Hatch range. By removing the hinges and unscrewing the friction lever, a lid can be replaced without needing to remove the base frame from the deck; saving you valuable time and money!

Supplied as shown complete with handles and friction lever cap. Replacement hinges are not included.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:
*
Please add the two numbers

Be the first to Write a Review for this item!

Low Profile Hatch Specifications

Size Style Overall Size

Cut-Out Size

Width (Y) Height (X) Depth (Z) Radius (R) Width (Y1) Height (X1) Radius (R1)
00 Square 281mm 281mm 25mm 72.5mm 211mm 211mm 42.5mm
03 Rectangular 301mm 246mm 25mm 72.5mm 231mm 176mm 42.5mm
10 Square 330mm 330mm 25mm 72.5mm 260mm 260mm 42.5mm
18 Circular 490mm Ø 25mm n/a 420mm Ø n/a
20 Rectangular 417mm 272mm 25mm 72.5mm 347mm 202mm 42.5mm
22 Circular 588mm Ø 25mm n/a 518mm Ø n/a
30 Rectangular 527mm 397mm 25mm 72.5mm 457mm 327mm 42.5mm
40 Square 491mm 491mm 25mm 72.5mm 421mm 421mm 42.5mm
41 Rectangular 491mm 246mm 25mm 72.5mm 421mm 176mm 42.5mm
44 Square 512mm 512mm 25mm 72.5mm 442mm 442mm 42.5mm
50 Rectangular 577mm 447mm 25mm 72.5mm 507mm 377mm 42.5mm
51 'D' hatch 588mm 448mm 25mm 72.5mm 518mm 378mm 42.5mm
54 Rectangular 577mm 467mm 25mm 72.5mm 507mm 392mm 42.5mm
60 Square 577mm 577mm 25mm 72.5mm 507mm 507mm 42.5mm
64 'D' hatch 500mm 600mm 25mm 72.5mm 430mm 530mm 42.5mm
65 Trapezoid   25mm See above

* Cut-Out sizes may change when Trim Kits are used.

Lewmar Hatch & Portlight Fitting Guide (PDF)



Low Profile Hatch Relative Shapes and Sizes
