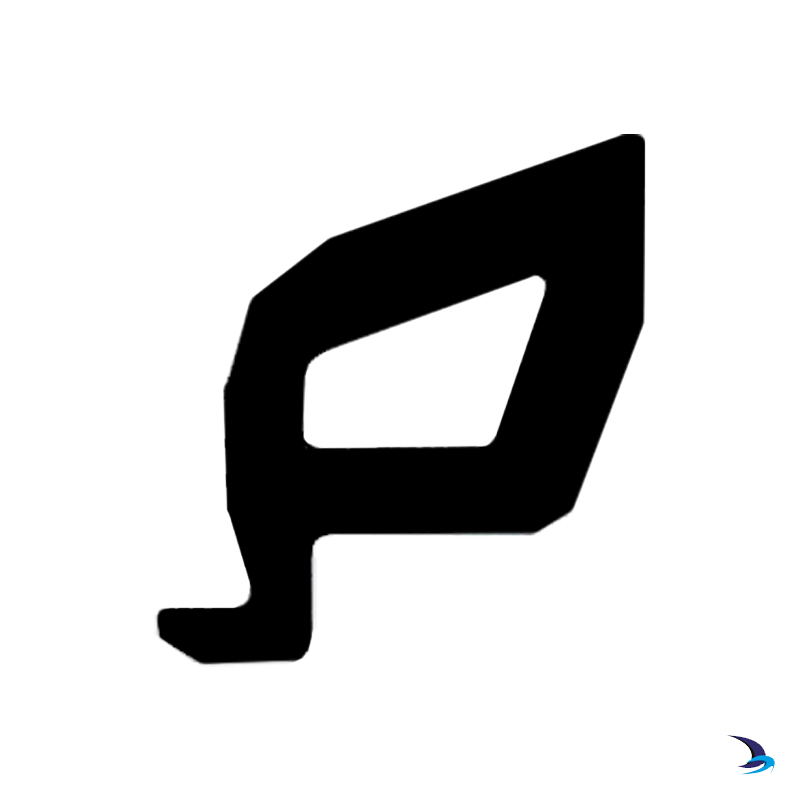

Lewmar - New Standard Portlight Seals

Lewmar - New Standard Portlight Seals

Lewmar

Portlight size:

Article Number:  360758999

Price:  £45.99
RRP:  £46.92
Save:  £0.93
(Inc. VAT @ 20%)
–+

Complete seal kits for New Standard Portlights (post 1997). All seals are provided with fitting instructions (downloadable version below).

See table below for New Standard Portlight size guide.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:

Be the first to Write a Review for this item!

Lewmar - Standard portlights
Size Style Overall size Cut-out size*
Width
(X)		 Height
(Y)		 Depth
(Z)		 Radius
(R)		 Width
(X 1)		 Height
(Y 1)		 Radius
(R 1)
0 Opening 323mm 176mm 4mm 62mm 303mm 156mm 52mm
1 Opening 367mm 191mm 4mm 62mm 347mm 171mm 52mm
1 RE Opening 367mm 191mm 4mm 95.5mm 347mm 171mm 85.5mm
2 Opening 425mm 176mm 4mm 62mm 405mm 156mm 52mm
3 Opening 449mm 191mm 4mm 62mm 429mm 171mm 52mm
4 Opening 646mm 191mm 4mm 62mm 627mm 171mm 52mm
4 L Opening 708mm 195mm 4mm 62mm 688mm 175mm 52mm
4 R Opening 708mm 195mm 4mm 62mm 688mm 175mm 52mm
5 Opening 449mm 264mm 4mm 62mm 429mm 244mm 52mm
7 RE Opening 425mm 191mm 4mm 95.5mm 405mm 171mm 85.5mm

New Standard Portlight Seal fitting instructions
