Lewmar - Trim Kits for New Standard Portlights

Lewmar - Trim Kits for New Standard Portlights

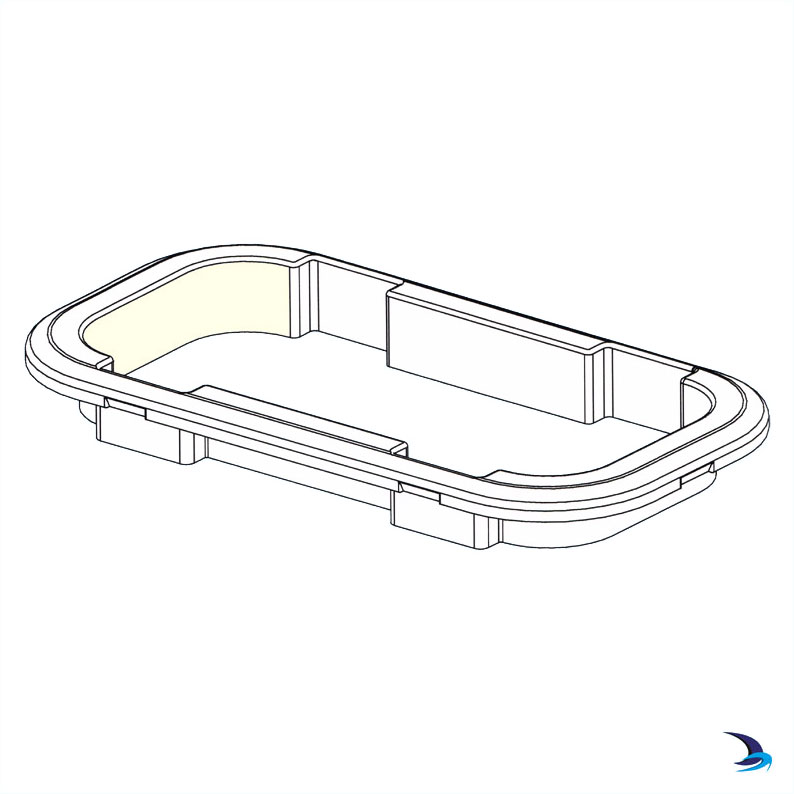

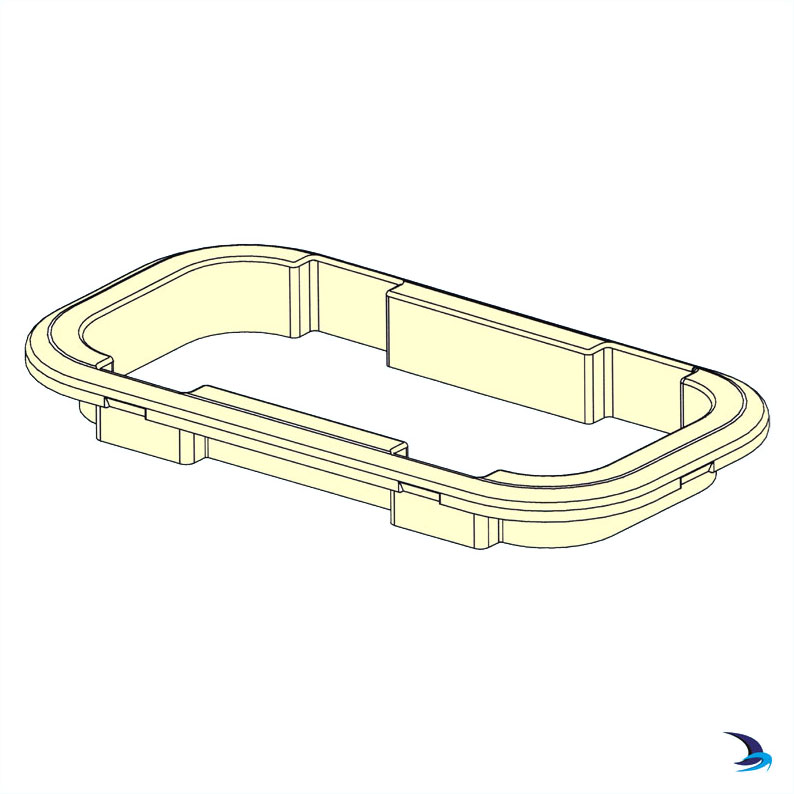

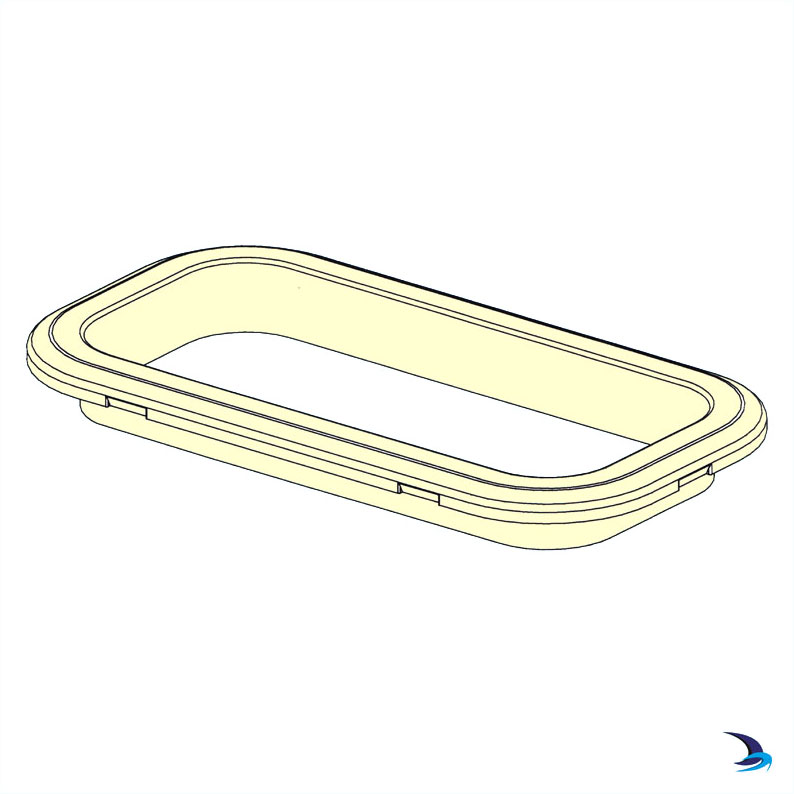

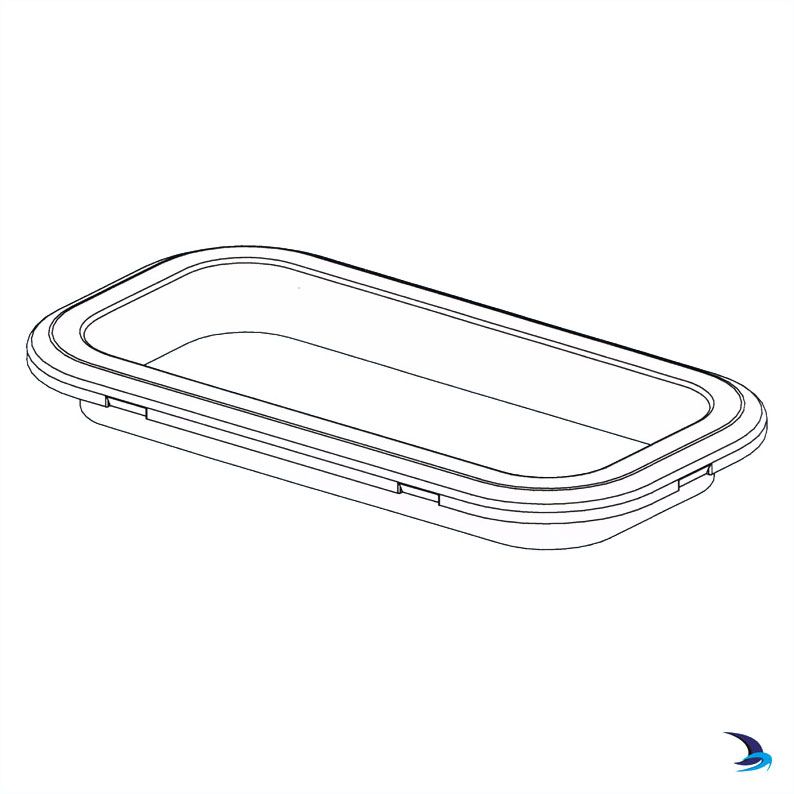

Trim colour: Ivory,  Fixed/Opening: FixedTrim colour: Ivory,  Fixed/Opening: OpeningTrim colour: White,  Fixed/Opening: FixedTrim colour: White,  Fixed/Opening: Opening

Lewmar

Portlight size:
Trim colour:
Fixed/Opening:

Article Number:  368301539

Price:  £42.99(Inc. VAT @ 20%)
+

Trim kits for Lewmar's New Standard fixed and opening portlights.

Available in white and ivory.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:

Be the first to Write a Review for this item!

Lewmar Standard Portlight Specifications

Size Style Overall size Cut-out size
Width (Y) Height (X) Depth (Z) Radius (R) Width (Y1) Height (X1) Radius (R1)
0 Opening 323mm 176mm 4mm 62mm 303mm 156mm 52mm
1 Opening 367mm 191mm 4mm 62mm 347mm 171mm 52mm
1RE Opening 367mm 191mm 4mm 95.5mm 347mm 171mm 85.5mm
2 Opening 425mm 176mm 4mm 62mm 405mm 156mm 52mm
3 Opening 449mm 191mm 4mm 62mm 429mm 171mm 52mm
4 Opening 646mm 191mm 4mm 62mm 627mm 171mm 52mm
4L Opening 708mm 195mm 4mm 62mm 688mm 175mm 52mm
4R Opening 708mm 195mm 4mm 62mm 688mm 175mm 52mm
5 Opening 449mm 264mm 4mm 62mm 429mm 244mm 52mm
7RE Opening 425mm 191mm 4mm 95.5mm 405mm 171mm 85.5mm
  • Minimum hull thickness 7mm
  • Maximum hull thickness 34mm
  • All portlights are supplied with 12 M5 x 25 screws for hull thickness 7-25mm
  • Porlights should be fitted to a flat surface ± 1mm

Lewmar Hatch & Portlight Fitting Guide (PDF)
