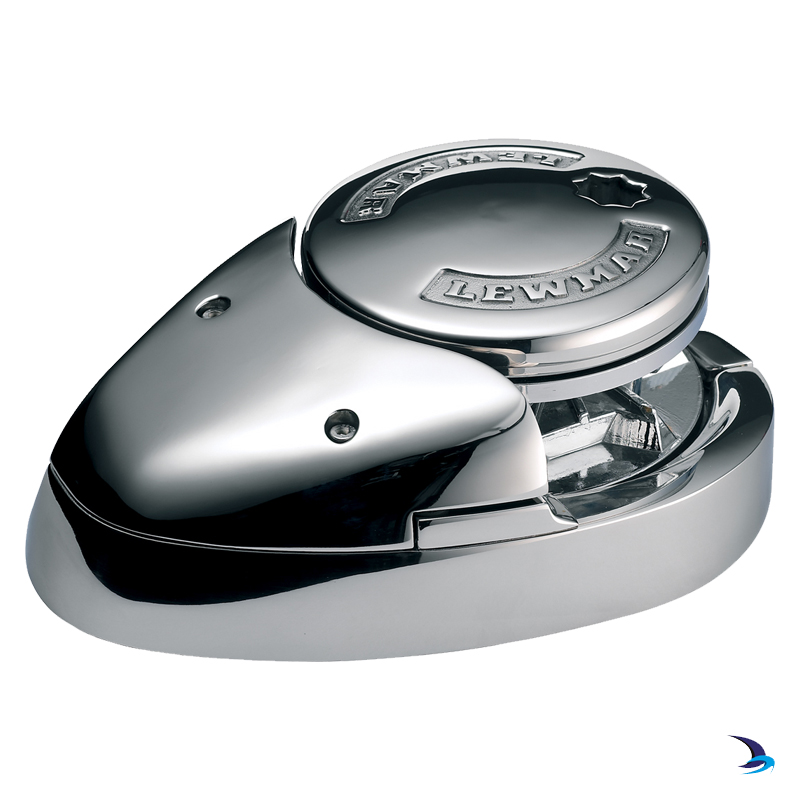

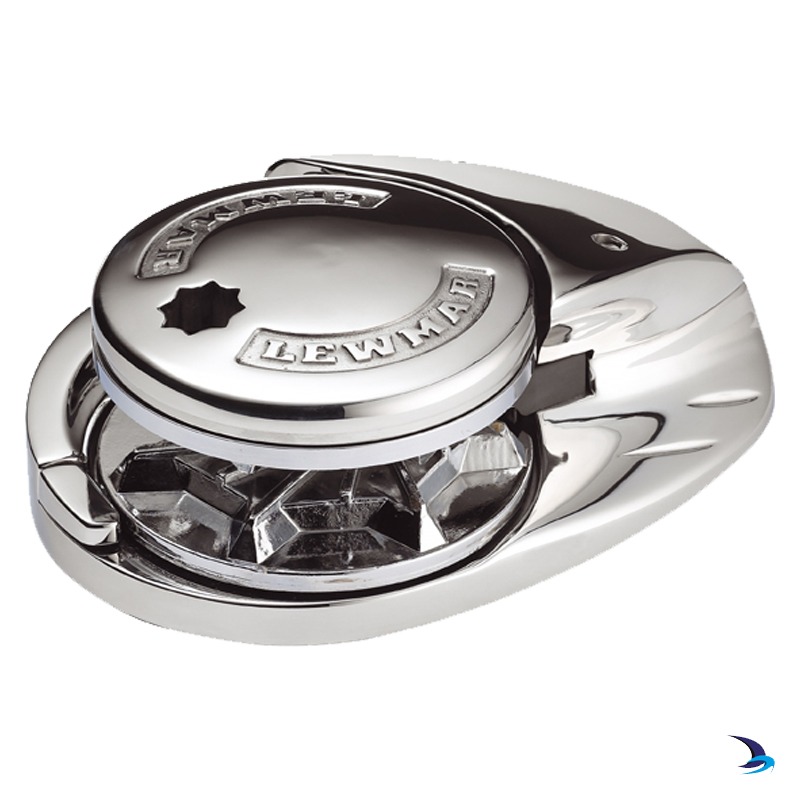

Lewmar - V3 Vertical Windlass Kits (FastFit™)

Lewmar - V3 Vertical Windlass Kits (FastFit™)
Lewmar - V3 Vertical Windlass Kits (FastFit™)Lewmar - V3 Vertical Windlass Kits (FastFit™)Lewmar - V3 Vertical Windlass Kits (FastFit™)Lewmar - V3 Vertical Windlass Kits (FastFit™)Lewmar - V3 Vertical Windlass Kits (FastFit™)

Lewmar

Windlass model:
Chain Size:
Voltage:

Article Number:  6672221197-139

Price:  CALL
(Inc. VAT @ 20%)
+

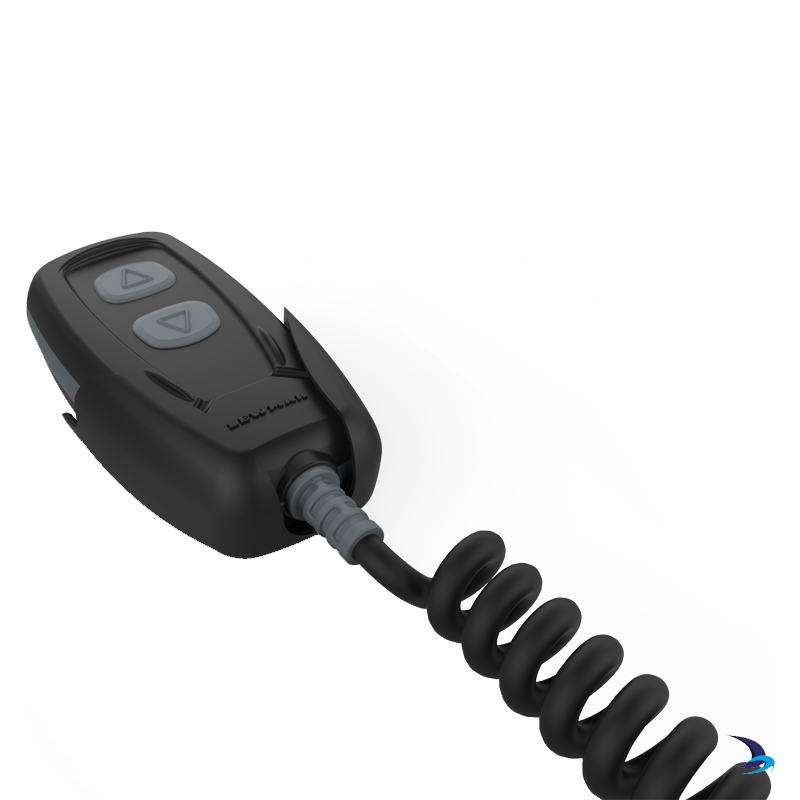

Lewmar - Windlass wired remote AA320Lewmar - Windlass wired remote AA320
Lewmar - SX foot switchLewmar - SX foot switch

Easy anchoring starts with a Lewmar windlass. The Lewmar V2 vertical windlass is suitable for boats approximately 38-49ft with average displacement. Displacement, windage and anchor weight must be taken into account when selecting a windlass. If your boat is of heavy displacement, consider a larger windlass model.

This kit contains everything you need to need to set up your new windlass - deck unit, motor gearbox, gypsy, contactor, circuit breaker & rocker switch. You may wish to add deck foot switches or a remote control in addition.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:

Be the first to Write a Review for this item!

Product Information

  • Rope-chain gypsy
  • Manual chain release (Free Fall)
  • Cone clutch for smooth, easy control
  • Optional manual override motor gearbox

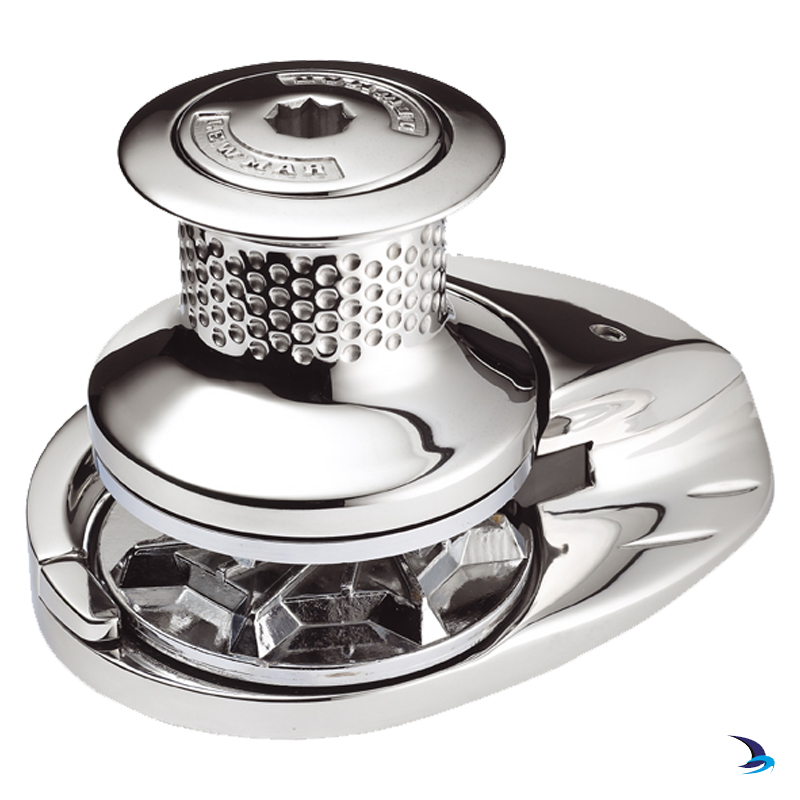

  • W.A.R.P Drum
  • Fall safe anchor lock
  • Robust/reliable worm gearbox
  • FastFit equipped for quicker installation and less hassle
  • Emergency recovery kit available
  • Water resistant IP68 kits available (please call us for a quote)


Lewmar FastFit™ Feature

The FastFit™ motor gearbox attachment enables the windlass to be fitted by one person alone.

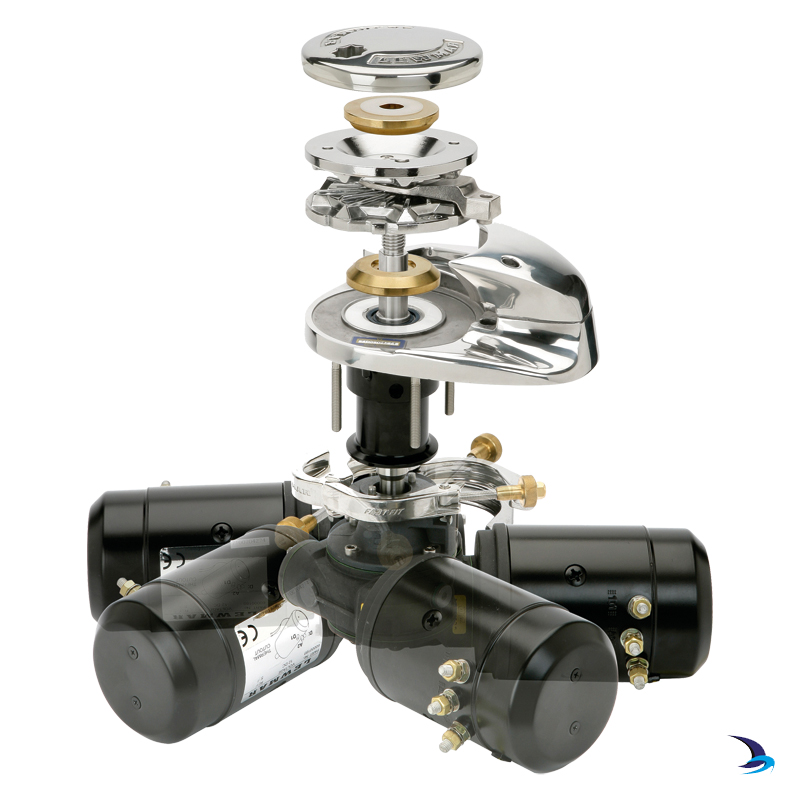

While the gearbox alignment to the deck unit is critical to a standard installation, the FastFit™ clamping system perfectly aligns the deck unit and motor gearbox for a perfect fit first time. The motor gearbox can be fitted and rotated in increments of 45°.

To install your windlass, simply fix the deck unit to the deck, slide the gearbox up the shaft, swing the FastFit™ clamp shut and tighten up the bronze nut. Simple!



Lewmar V Series Specifications

Model Motor power Max pull Working load Max line speed  Normal current draw Circuit breaker Weight
  Gypsy only Gypsy/drum

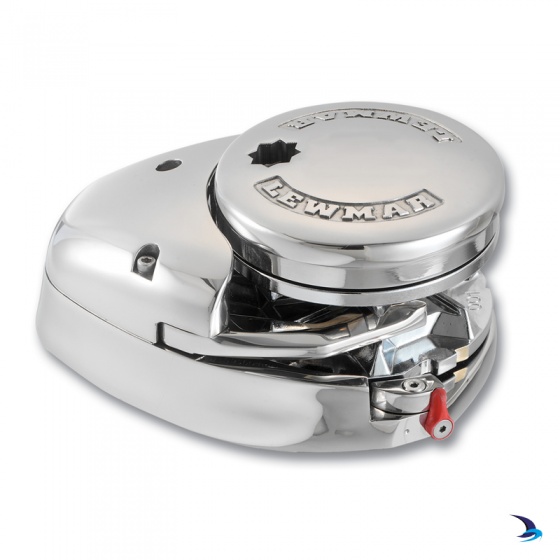

V1-12V 700W 454kg 113kg 19 m/min 80A 90A 19kg -
V2-12V 700W 650Kg 163kg 21 m/min 80A 90A 19kg 22kg
V2-24V 900W 760kg 180kg 24 m/min 45A 50A 19kg

22Kg

V3-12V 1000W 890kg 215kg 28 m/min 85A 110A 21.5kg 24.5kg
V3-24V 1000W 1020kg 243kg 30 m/min 60A 90A 21.5kg 24.5kg


Lewmar V Series Gypsy Specifications

Gypsy Number Chain Description Rope Description
006 6mm ISO 4565, 1/4" G40, 1/4" BBB 12-14mm (1/2") 3-strand and 8-plait
000 7mm ISO 4565, 1/4" G40, 1/4" BBB 12-14mm (1/2) 3-strand and 8-plait
001 8mm DIN 766, 8mm ISO 4565, 5/16" G40 12-16mm (1/2"-5/8") 3-strand and 8-plait (5/8" only)
002 10mm DIN 766, Campbell 3/8" S4 12-16mm (1/2"-5/8") 3-strand and 8-plait (5/8" only)
003 10mm iSO, Campbell 3/8" S3, Lewmar 9.5mm G40 16mm (5/8") 3-strand and 8-plait
