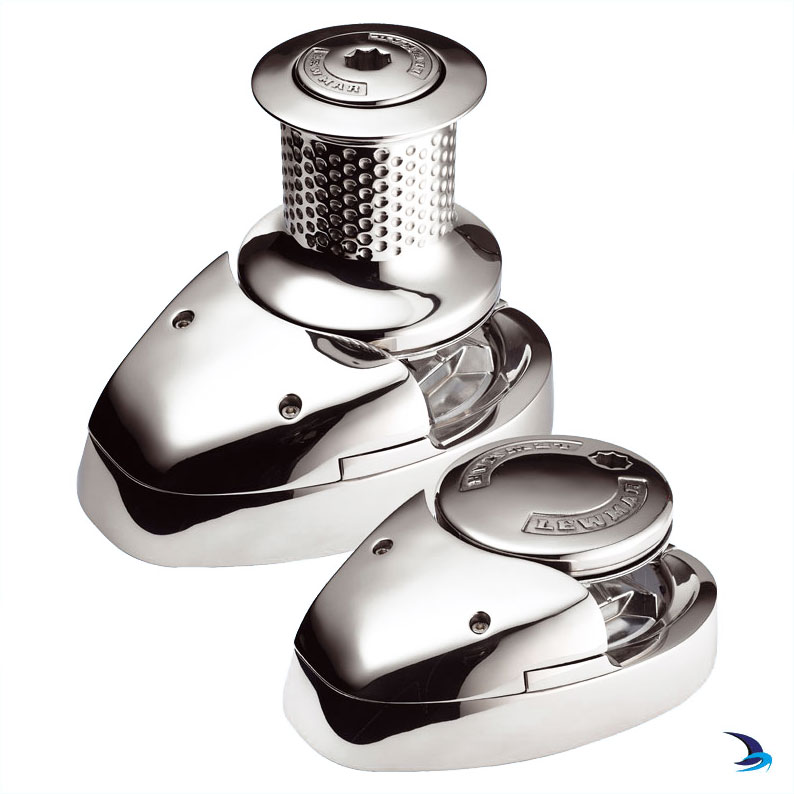

Lewmar - V4/V5 Vertical Windlass Kits

Lewmar - V4/V5 Vertical Windlass Kits

Lewmar

Windlass model:
Gypsy no. (see guide below):
Gypsy type:

Article Number:  V4201GO12V

Price:  £2,712.00(Inc. VAT @ 20%)
+

Complete kit - everything you need to set up your windlass

Gypsy Number Chain Description Rope Description
201 8mm DIN 766, 8mm ISO 4565, 5/16" G40, 5/16" Campbell S4 12-14mm (1/2") 3 strand hard lay up
202 10mm DIN 766, 5/16" Campbell S3, 3/8" Campbell S4, 9.5mm G30 16mm (5/8") 3 strand hard lay up
203 10mm ISO 4565, 3/8" Campbell S3, Lewmar 9.5mm G40 16mm (5/8") 3 strand hard lay up
204 12mm ISO 4565, 13mm DIN 766 18-20mm (3/4") 3 strand hard lay up

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:

Be the first to Write a Review for this item!

Product Information

Complete windlass kit includes deck unit, gypsy, motor gearbox, contactor, circuit breaker & rocker switch.



  • For Boats up to 22m (72ft)
  • Rope-chain gypsy
  • Cone clutch for smooth, easy control
  • Manual Free Fall
  • W.A.R.P Drum
  • Robust and reliable drive train
  • Reed switch and magnet fitted as standard
  • Manual override (optional)
  • The largest rope chain windlass in the range


Model Motor power Max pull Working load Max line speed  Normal current draw Circuit breaker Weight
  Gypsy Gypsy/drum
V4-12v 1600W 1250kg 313kg 25 m/min 125a 150a 29kg 36kg
V4-24V 2000w 1500Kg 375kg 27 m/min 70a 110a 29kg 36kg
V5-12V 2000W 1450kg 363kg 27 m/min 120a 150a 31kg 38kg
V5-24V 2000W 1600kg 400kg 29 m/min 60a 110a 31kg 38kg

Prices include contactor, rocker switch and circuit breaker



Gypsy Number Chain Description Rope Description
201 8mm DIN 766, 8mm ISO 4565, 5/16" G40, 5/16" Campbell S4 12-14mm (1/2") 3 strand hard lay up
202 10mm DIN 766, 5/16" Campbell S3, 3/8" Campbell S4, 9.5mm G30 16mm (5/8") 3 strand hard lay up
203 10mm ISO 4565, 3/8" Campbell S3, Lewmar 9.5mm G40 16mm (5/8") 3 strand hard lay up
204 12mm ISO 4565, 13mm DIN 766 18-20mm (3/4") 3 strand hard lay up
