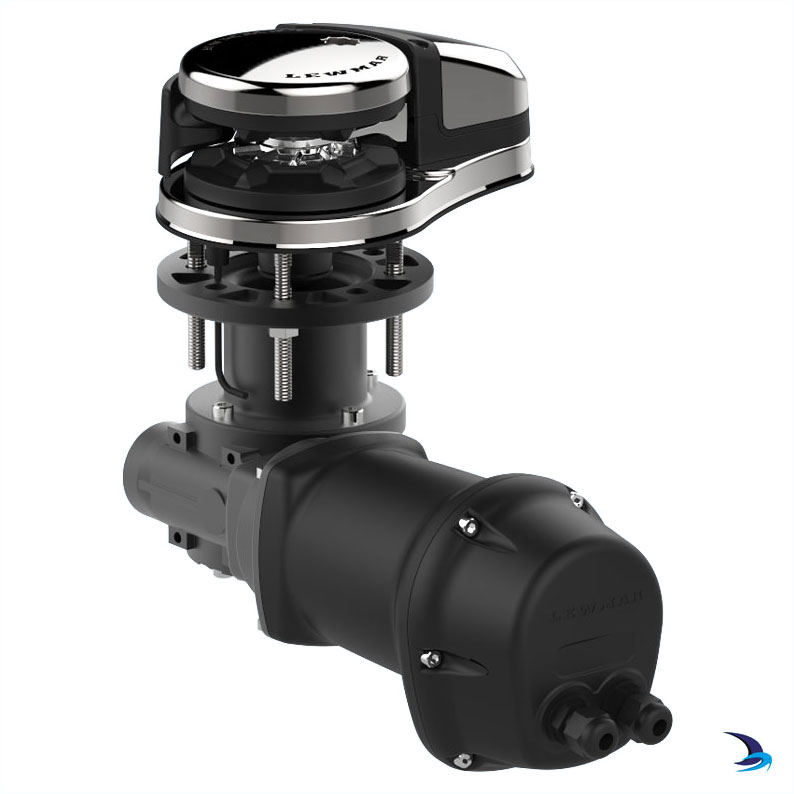

Lewmar - VX1 Vertical Windlass Kits

Lewmar - VX1 Vertical Windlass Kits



Manufacturer #:  69100030

£789.99    (Inc. UK VAT @ 20%)RRP:  £997.58Save:  £207.59 (21%)(£658.33 Exc. VAT)

Offers a maximum pull of 675kg, for boats up to 40ft.

The VX1 is the first in the expansive new range of windlass. Using a new product development team solely working on new ways to design, develop and manufacture, Lewmar has been able to offer new age technologies to refine their windlass design. This makes the VX range lighter, stronger & more efficient than any competitor on the market.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Lewmar VX1 Windlass Features

  • Motor range 300 & 500W in 12 Volt
  • VX1- Robust worm wheel gearbox
  • Stylish stainless steel and composite construction
  • IP67 cover as standard
  • Same footprint as V1 model
  • 2 models available to suit calibrated chain 6/7mm, ¼” and 8mm

Complete extended windlass kit includes -

Deck unit, gypsy, motor gearbox, solenoid, circuit breaker and rocker switch.

VX Vertical Windlass Featuring Hybrid Polymer Gypsy

Lewmar has developed a Patent Pending hybrid gypsy, which uses a metal anchor warp core together with a polymer chain wheel. This combination offers a lightweight and quiet solution that ensures smooth operation, while still offering the long-life durability of the traditional metal gypsy. The polymer chain wheel allows the anchor rode chain to bed-in, creating a jump free quieter operation, while the metal anchor warp core grips the warping during deployment and retrieval of the anchor rode such as with a conventional gypsy.

IP67 Rated Motor Gear Box

This will be the first ingress protection cover that Lewmar has offered on the small windlass and will be standard on all the new VX windlass range.

The new cover offers:

  • Silicone sealant free assembly
  • Orientation flexibility - can be set by the end user
  • Self-Certified to Ingress Protection level 67 to EN 60529
  • This new IP cover is not backwards compatible with any RMI40 gearbox and not available on the V1, CPX0 700W or CPX1 windlasses.
  • Motor sizes: 300W or 500W

Lewmar VX1 Specifications

Motor Power Max Pull Working Load Max Line Speed Normal Current Draw Circuit Breaker Approx Weight
(W) (KG) (KG) (M/MIN) (A) (A) (KG)
300 400 100 25 66 50 12.5
500 675 169 25 126 70 12

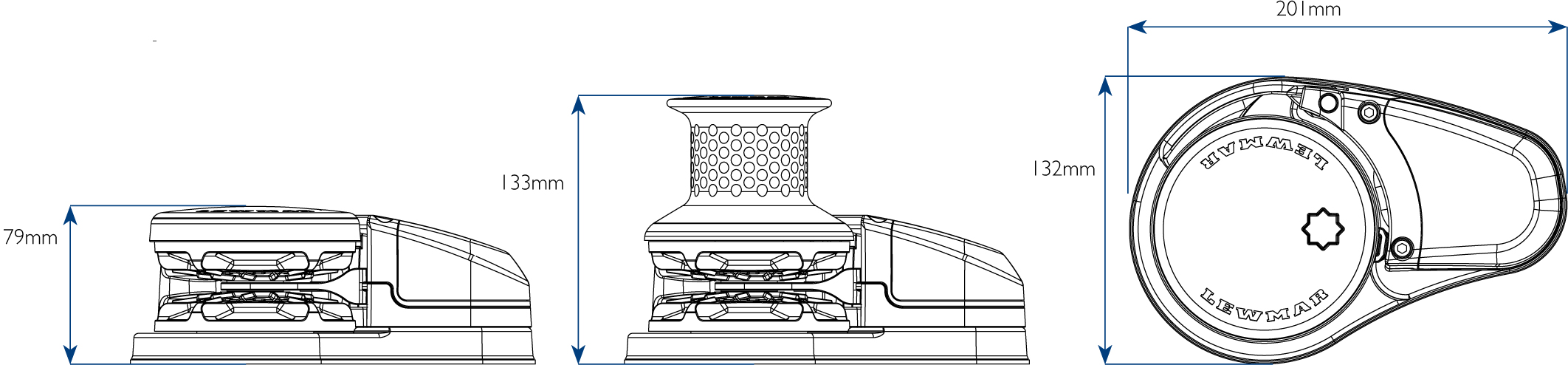

Lewmar VX1 Dimensions
