Profurl - R480 Racing Reefing System

Foil Length:

Manufacturer #: R48018

£6,649.99 (Inc. UK VAT @ 20%)RRP: ~~£7,388.00~~Save: £738.01 (10%)(£5,541.66 Exc. VAT)

You may also need:

Profurl - Long Link Plates for C480, C520, C530 & R480

+ £289.99

Details
Delivery
Customer reviews (0)

The Profurl R480 system was designed for boats between 15.5m and 20m (52 ft to 65 ft). Reliability, high performance and long-life: Profurl's Racing range of reefing-furling systems are designed for cruising/racing, regattas, blue water sailing or even offshore racing. Designed to last, Racing reefing-furling systems integrate the best of Profurl's proven technology to guarantee safe, enjoyable, high-performance sailing.

The R480 System is supplied with Short Link Plates as standard. See below for further information.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.


* Quantity Required:
Article Number:
* E-mail Address:

*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Profurl R480 Furling System Specifications

Name	R480
Range	Cruising, Racing
Max forestay diameter	12.7mm (1/2") - rod 40
Boat length	From 15.5 to 20m (52 to 65 ft)
Standard furling length (others)	18m (20 and 22m)
Extrusion length	2m (6' 6")

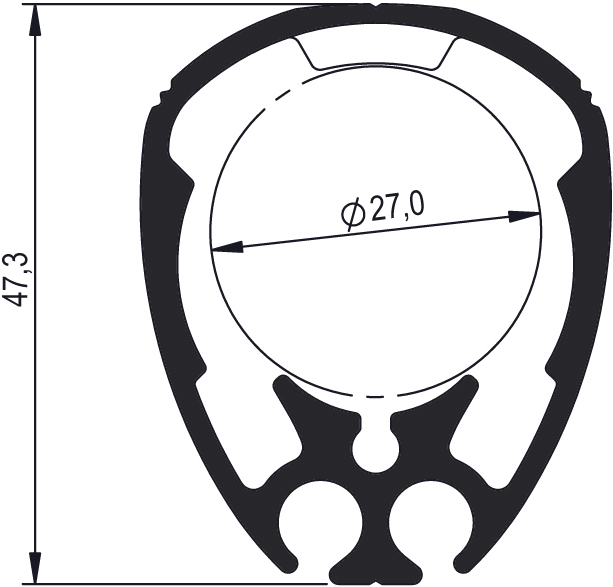

Extrusion shape and colour	Oval & black (see below)
Clevis pin diameter	16/18/19/22/25/28 mm
Feeder	Yes
Luff line diameter	6mm (15/64")
Double luff groove	Yes
Removable drum	Yes
Furling line diameter	10 or 12mm (3/8" or 1/2")
Drum capacity	30m with 10mm furling line 22m with 12mm furling line
Max LP	26.5m with 10mm furling line 14.5m with 12mm furling line
Max genoa area	100 sqm
Standard fitting	Closed to the deck
Warranty	10 years

Profurl R480 Furling System Dimensions

Dimensions of the standard model (mm)
A	68
B	14
C	28
D	250
ØD1	276
E	146
F	535
G	170.5
H max	205
I	194
J	84
K	47
L	319
L1	27
M	100
N	23.5
P	250
Q	125
R	101
T max	52
U	342
ØV	116
W	146
X	-
Y	48
Z	18287

Why Choose Profurl Racing Manual Furling?

Range of 5 models for boats from 6 to 20 m.
Black anodised aerofoil profile.
Light and robust extrusions
Maintenance free ball bearings
Several fitting possibilities: adjustment plates, long link plates, turnbuckle cylinder, below the deck fitting, stainless steel locking devices
Additional option: stainless steel locking devices or turnbuckle cylinder
10-year worldwide limited warranty.

Choosing your Profurl Racing Furling System

		Boat length (metres) and max sail area
Model	Max Forestay Ø mm	6	7	8	9	10	11	12	13	14	16	19
R250	6.35	30m²
R350	8					45m²
R420	10							70m²
R430	11.1								90m²
R480	12.7/14*										100m²

Profurl Racing Systems Specifications

Racing Range	R250	R350	R420	R430	R480
	Halyard swivel systems
Max forestay Ø (mm)	6.35	8	10	11.1	12.7/14*
Equivalent in # rod	# 10	# 17	# 22	# 30	# 40
Clevis pin Ø (mm)	8-10-12-14-16		10-12-14-16-19-22-25		16-18-19-22-25-28
Furling standard length (m)	8	12	14	16	18
Extrusion length (m)	2	2	2	2	2
Weight/metre (kg)	0.383	0.638	0.835	0.835	1.2
Removable drum	✔	✔	✔	✔	✔
Feeder	✔	✔	✔	✔	✔
Opening pre-feeder	✔	✔	✔	✔	✔
Double luff groove	✔	✔	✔	✔	✔
Luff line Ø (mm)	5	5	5	5	6
Luff rope pre-feeder	Optional
Long link plates	Optional
Turnbuckle cylinder	Optional
Stainless steel locking devices	Optional			✘	Specific locking device
Warranty	10-year worldwide warranty

*If using a swageless eye, you must take both the maximum sail surface area and the drum capacity into consideration.

What kind of fitting for my Profurl furling system?

Standard fitting with short link plates - Type of locking devices: standard and threaded pin for a stay eye fitting

Raise the drum mechanism in order to clear the deck in case of obstacles (bow roller etc.).
Fitting with adjustment plates is also possible.

Fitting with long link plates - Type of locking devices: standard

The drum can be lifted to avoid interference with the anchor and to reduce the sail chafe of the lifelines.
The forestay length is still adjustable.

Fitting close to the deck - Type of locking devices: stainless steel and smooth pin

Increase the luff length.

Fitting with a turnbuckle cylinder - The rigging screw goes into the turnbuckle cylinder

The furler can be fitted lower to the deck.
It is also possible to use a combination of a turnbuckle cylinder and long link plates.

Below the deck fitting

An aesthetic solution chosen by some boatbuilders (Beneteau, X-Yacht), contact for more information.
Adjustable tack fitting.
