TruDesign - Load Bearing Collar for Ball Valves Small
 TruDesign - Load Bearing Collar for Ball Valves SmallTruDesign - Load Bearing Collar for Ball Valves Small

TruDesign - Load Bearing Collar for Ball Valves Small

TruDesign

Manufacturer #:  90856

Price:  £14.99    (£12.49 Exc. VAT)

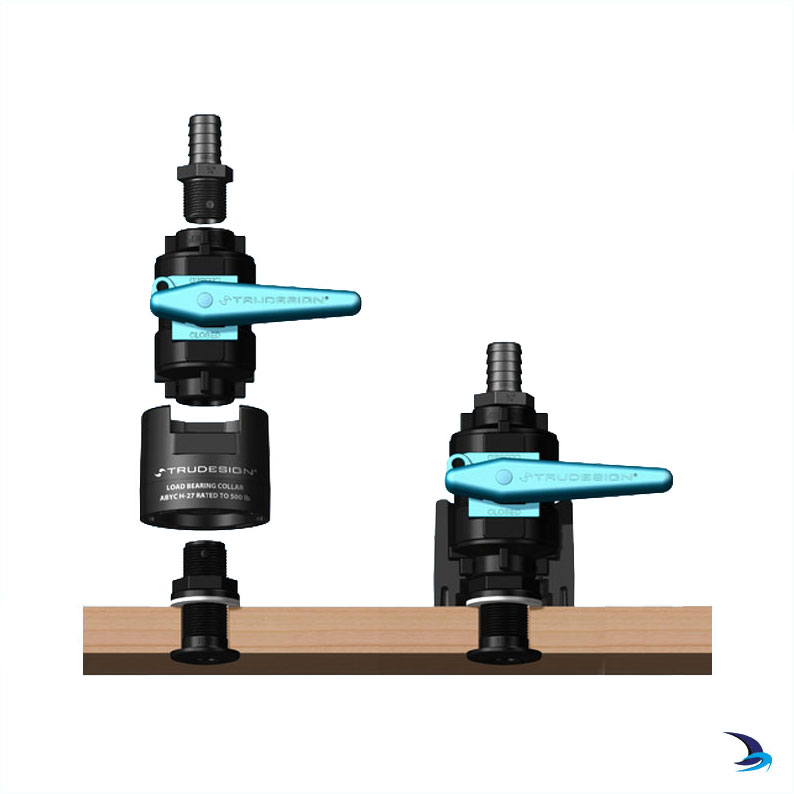

TruDesign Load Bearing Collars are designed for use with TruDesign Skin Fittings and Ball Valves. With the Collar in place, the Skin Fitting-Ball Valve-Hose Tail assembly will withstand a 500 lb (227 kg) static force applied to the Hose Tail end of the assembly, for a minimum of 30 seconds – complying with North American ABYC H-27 standards. Compliance to this standard is mandatory for all vessels sold into the United States

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

TruDesign Load Bearing Collar Features

  • ABYC H-27 compliance for ½”, ¾”, 1”, 1¼”, 1½”, and 2" sized assemblies. Strength and peace of mind - rates assemblies to withstand a static load of 227kg (500 lb) at the tail end for a minimum of 30 seconds
  • Compact footprint
  • No additional bolts or fasteners through or on to the hull
  • Ability to retrofit to existing TruDesign assemblies
  • Compatible with all hull types across a wide range of hull thicknesses
  • Shrouded protection - protects vulnerable areas such as the exposed thread of the skin fitting from being inadvertently struck by loose items in the hull
  • Fool-proof assembly - if not snug when tightened the Skin Fitting's length will need shortening
  • Manufactured from a glass reinforced nylon composite - high strength and light weight
  • Immune to corrosion and electrolysis


TruDesign Load Bearing Collar Specifications



Note: TruDesign 2" Skin Fittings meet the requirements of H-27 as standard (i.e. without a Large Collar installed). Adding a Large Collar to assemblies of this size increases the overall strength and protects the vulnerable exposed section of thread on the Skin Fitting.
