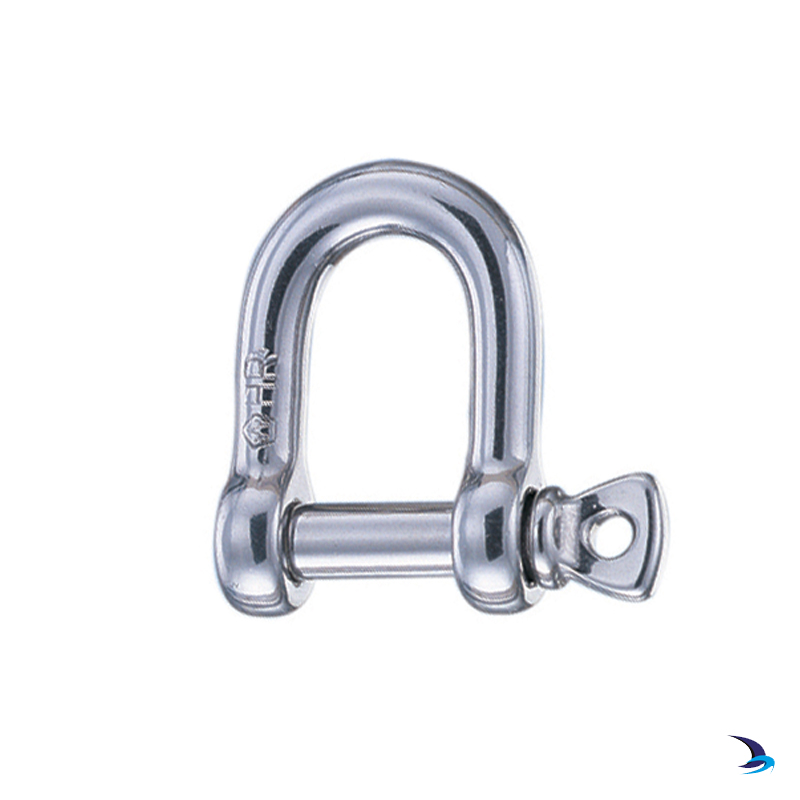

Wichard - High Resistance D Shackles

Wichard - High Resistance D Shackles

Wichard

Size:

Manufacturer #:  11203

Price:  £18.59(Inc. VAT @ 20%)
+

D Shackles forged in HR 17.4 Ph stainless steel can be up to 60% more resistant than a shackle in 316L stainless steel.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Features

  • High working and breaking loads
  • Designed to support high loads

Applications

  • Designed to be used on large ocean-going monohulls and multihulls or for high loads applications.

Material

  • HR stainless steel 17.4 PH


Wichard HR D Shackle Specifications

Part no. Length Material Ø Working load Break load Weight
11203 20mm 6mm Ø 1,040kg 2,300kg 24g
11204 26mm 8mm Ø 1,760kg 4,100kg 52g
11205 33mm 10mm Ø 2,640kg 6,000kg 102g
11206 39mm 12mm Ø 3,600kg 10,000kg 192g
11207 49mm 14mm Ø 5,120kg 12,000kg 304g
11208 56mm 16mm Ø 6,800kg 19,000kg 464g
11209 70mm 20mm Ø 8,800kg 28,000kg 860g
