Wichard - High Resistance Snap Shackles with Clevis Pin

Wichard - High Resistance Snap Shackles with Clevis Pin

Wichard

Size:

Manufacturer #:  2293

Price:  £51.99(Inc. VAT @ 20%)
+

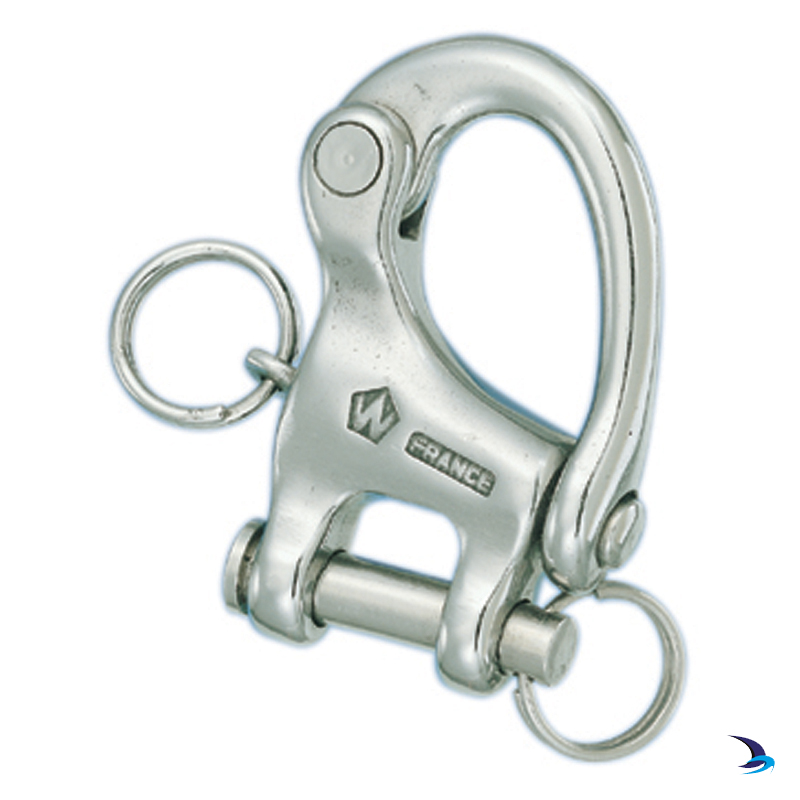

Forged snap shackle (316L) with fixed eye.

Wichard High Resistance 'HR' Snap Shackles are the product of cutting- edge technological development, they are simple, safe and strong. The plunger pin is set captive into the hook during assembly and cannot become detached.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Features

  • The plunger pin is set captive into the hook and cannot become detached
  • Excellent working and breaking loads
  • Easy to open by pulling the plunger pin (possiblity to attach a lanyard)

Material

  • HR stainless steel 17.4 PH


Wichard Clevis Pin Snap Shackle Specifications

Shackle 2293 2295 2297
Weight 54g 130g 257g
Length 52mm 70mm 86mm
Working Load 960kg 1280kg 2800kg
Breaking Load 2000kg 3850kg 7000kg
A 16mm 21mm 26mm
B 8.1mm 11.5mm 14mm
C 13mm 16mm 21mm
E 39.5mm 54mm 65.5mm
Diameter D 6mm 8mm 10mm
