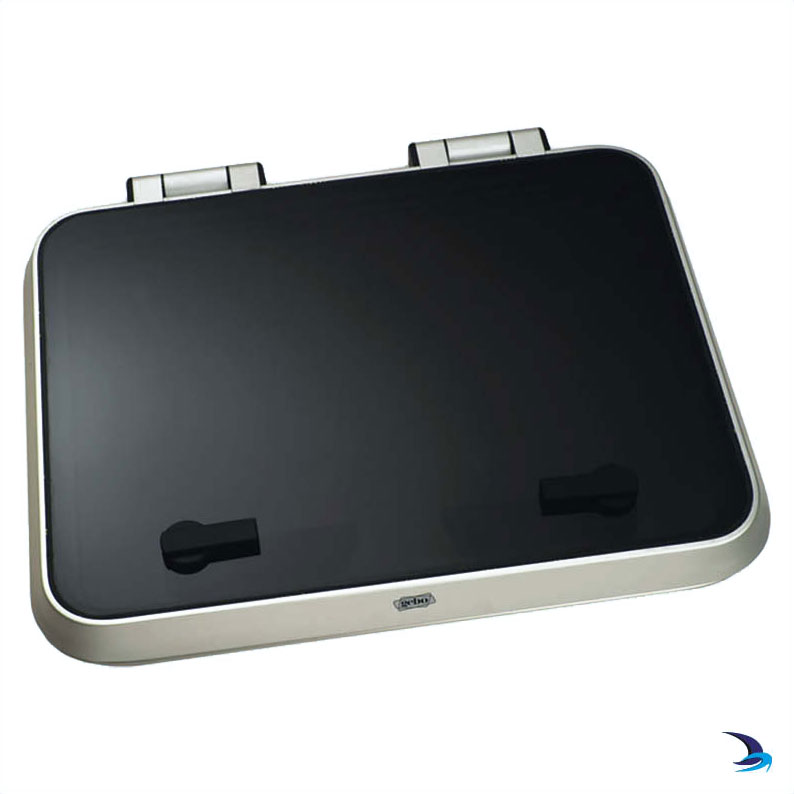

Gebo - Standard Deck Hatches

Gebo - Standard Deck Hatches

Gebo

Hatch cut-out:
Flange:

Article Number:  80.20.10.00

Price:  £224.00
RRP:  £264.07
Save:  £40.07
(Inc. VAT @ 20%)
+

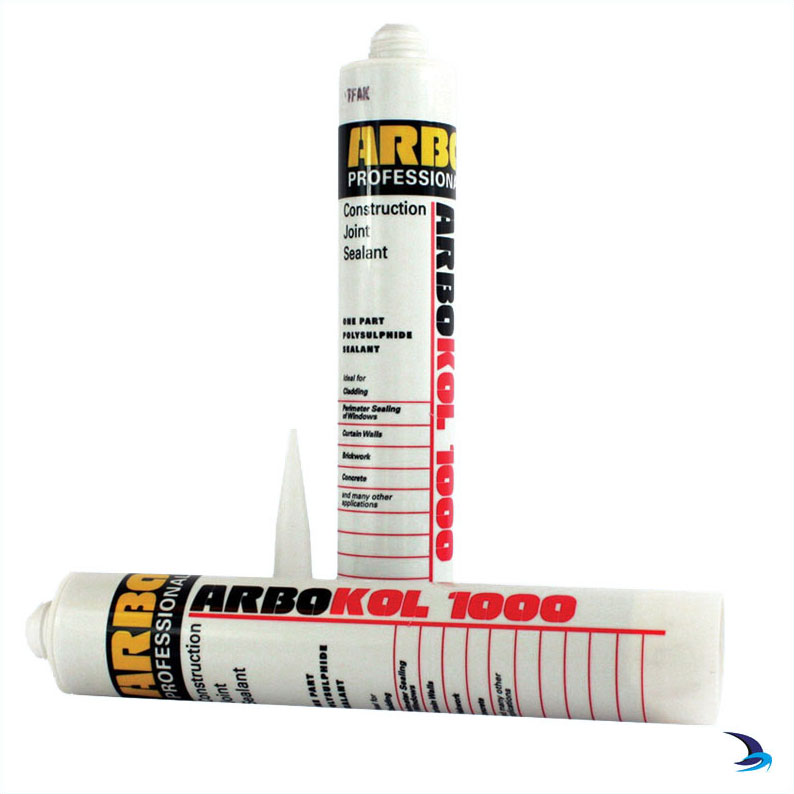

ARBO - Arbokol 1000 Polysulphide SealantARBO - Arbokol 1000 Polysulphide Sealant

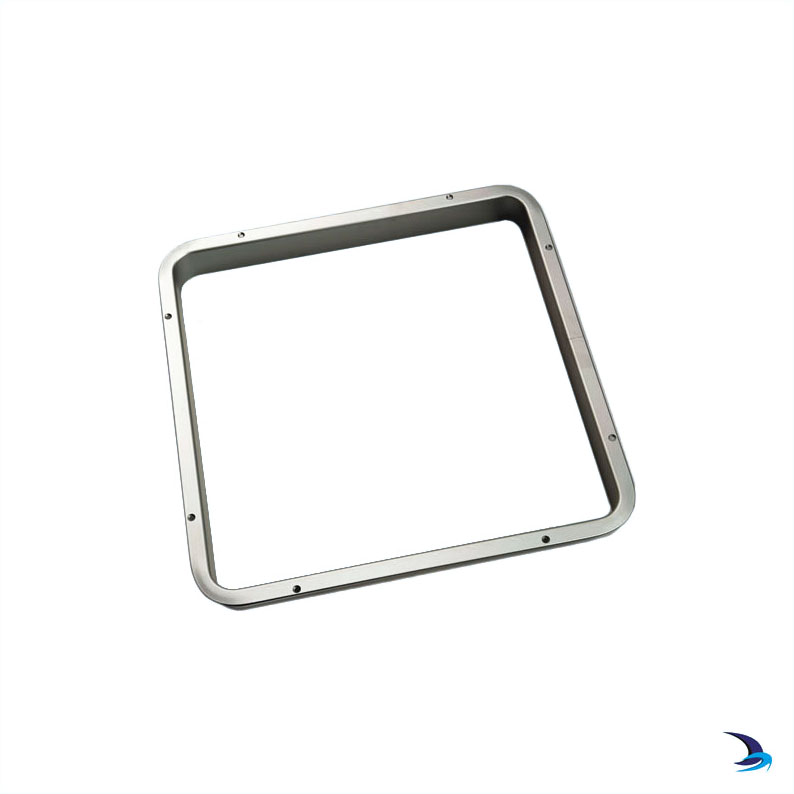

Gebo - Aluminium Inner Rims for Gebo Standard Deck HatchesGebo - Aluminium Inner Rims for Gebo Standard Deck Hatches

For over 25 years the Gebo Standard Deck hatch was one of the most widely used hatches in the world. This Dutch hatch is made from finest quality, seawater resistant, anodised aluminium and has a standard smoke grey acrylic panel. All parts are constructed from non-corrosive materials. A deep groove in the lower frame keeps water from coming in when the hatch is open. All sizes certified for CE Category A, Areas 2, 3 & 4.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:

Average Rating (1 Review):
Write a Review and share your opinions!

Rating:
Gebo deckhatch
Wednesday, 13 July 2016  |

Excellent product delivered quickly and in perfect condition. Many thanks

Was this helpful to you?  Yes  /  No

This review has not been appraised.

Product Information

Without flange
The Standard Deck Hatch is provided without a flange for easy installation on the deck. Hatches have cut-out radii of 30mm except for the 502mm x 502mm hatch which has cut-out radii of 40mm.

With flange
For a smoother profile, the frame on our standard hatches has been extended to fit flush against the base mounting. The frame covers the base mounting screws for a smoother appearance and extra safety. Hatches have cut-out radii of 55mm.

Hatches have to be installed on a flat surface with a max. tolerance of 1mm.

The cutout size is 16mm less than the overall size. From the cutout size, you can see which inner rim or mosquito screen fits to which hatch.

The standard hatch is manufactured with grey smoke acrylic. Clear, bronze and green acrylic are available to purchase by special order. Hatches with a flange and corner radius 30 can also be manufactured to order.

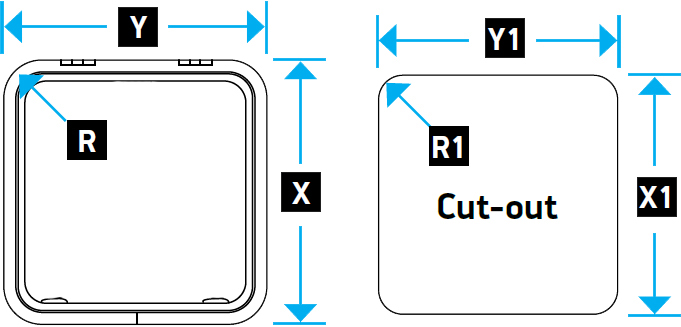

Cut-out (X1 x Y1) Flange Acrylic thickness Cut-out radius (R1) Overall (X x Y) Overall radius (R)
200 x 200mm With flange Unavailable
200 x 200mm No flange 10mm

30mm

260 x 260mm 60mm
260 x 260mm With flange Unavailable
260 x 260mm No flange 10mm 30mm 320 x 320mm 60mm
325 x 185mm With flange Unavailable
325 x 185mm No flange 10mm 30mm 385 x 245mm 60mm
341 x 196mm With flange Unavailable
341 x 196mm No flange 10mm 30mm 401 x 256mm 60mm
410 x 410mm With flange 10mm 55mm 505 x 375mm 83mm
410 x 410mm No flange 10mm 30mm 470 x 470mm 60mm
450 x 320mm With flange Unavailable
450 x 320mm No flange 10mm 30mm 510 x 380mm 60mm
451 x 451mm With flange Unavailable
451 x 451mm No flange 10mm 30mm 511 x 511mm 60mm
500 x 370mm With flange 10mm 55mm 555 x 425mm 83mm
500 x 370mm No flange 10mm 30mm 560 x 430mm 60mm
500 x 500mm With flange 10mm 55mm 555 x 555mm 83mm
500 x 500mm No flange 10mm 30mm 560 x 560mm 60mm
620 x 620mm With flange 15mm 55mm 675 x 675mm 83mm
620 x 620mm No flange 15mm 30mm 680 x 680mm 60mm
680 x 550mm With flange 15mm 55mm 735 x 615mm 83mm
680 x 550mm No flange Unavailable
800 x 800mm With flange Unavailable
800 x 800mm No flange 15mm 30mm 860 x 860mm 60mm
900 x 600mm With flange 15mm 55mm 955 x 655mm 83mm
900 x 600mm No flange Unavailable
900 x 900mm With flange Unavailable
900 x 900mm No flange 15mm 30mm 960 x 960mm 60mm
1150 x 750mm With flange 15mm 55mm 1205 x 805mm 83mm
1150 x 750mm No flange Unavailable
