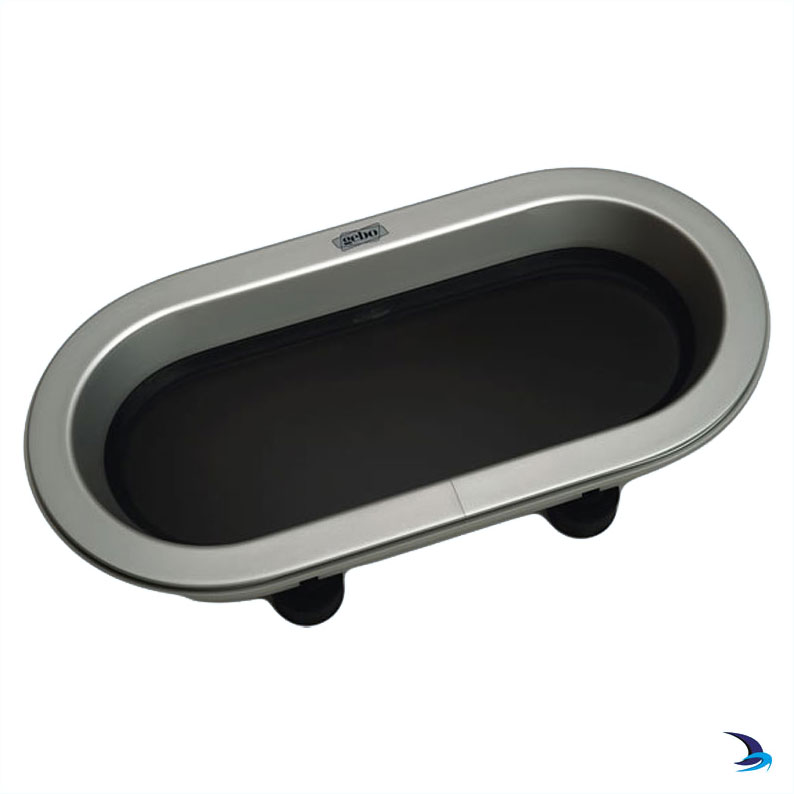

Gebo - Standard Portlights (Circular Ended)

Gebo - Standard Portlights (Circular Ended)

Gebo

Port size:
Fixed/Opening:

Article Number:  81.20.21.05

Price:  £258.99
(Inc. VAT @ 20%)
+

Gebo portlights are made from anodised aluminium and have a standard smoke grey acrylic sheet of 10mm thickness. All parts are constructed from non-corrosive materials.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:

Be the first to Write a Review for this item!

Product Information

Watertight design
Unlike many designs, Gebo portlights are designed for watertight hull fitting, so there's no problem when a heeling yacht places the portlight against the pressure of fast running water.

Easy installation....and no hole drilling!
Each Gebo portlight is supplied with an aperture template to aid fitting.  There are no holes to drill as Gebo's unique clamp system provides the perfect fit. You simply apply sealant between portlight and hull, then screw the inner rim onto the back of the outer frame from the inside.  Both rim and frame are pre-drilled.  Suitable for hull thickness of 4 to 23mm.

Friction hinges
Gebo's friction hinge firmly fixes the portlight in any position without the need for stays.

Non-drip design
The smooth angled outer frame prevents water from collecting on the frame and dripping into your cabin when the portlight is opened.

All Gebo Standard portlights are CE Approved for Category A, Areas 1, 2, 3 & 4.

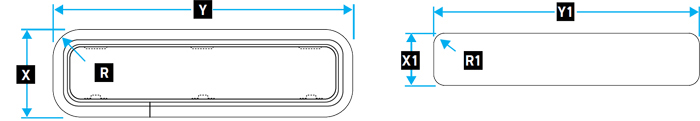

Size Style Overall dimensions Cut-out dimensions
Width (Y) Height (X) Radius (R) Width (Y1) Height (X1) Radius (R1)
1 Opening / fixed 400mm 200mm 100mm 375mm 175mm 88mm
2 Opening / fixed 508mm 324mm 126mm 483mm 229mm 114mm
3 Opening / fixed 625mm 200mm 100mm 600mm 175mm 88mm
