Lewmar - Replacement Hatch Acrylics for Bavaria Yachts

Lewmar - Replacement Hatch Acrylics for Bavaria Yachts


Hatch size:

Article Number:  361248990

Price:  £205.99
RRP:  £206.15
Save:  £0.16
(Inc. VAT @ 20%)

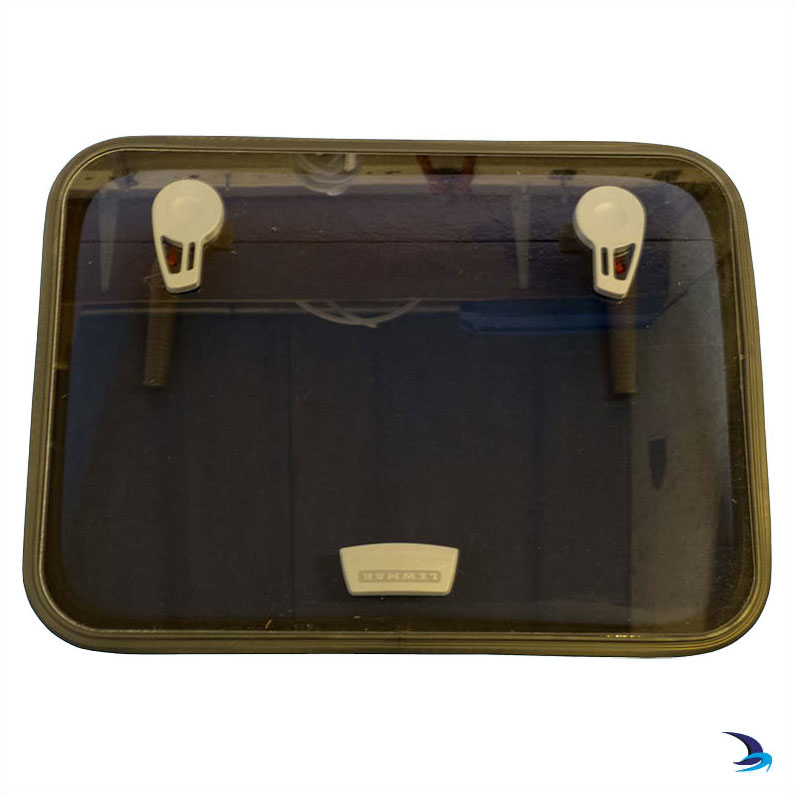

Replacement acrylics/lenses are available for Lewmar Low Profile hatches fitted to Bavaria Yachts, these sizes are unique to Bavaria.

New acrylics are supplied complete with new seal pre-mounted, plus new handles and friction lever cap.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

Quantity Required:
Article Number:
E-mail Address:

Average Rating (4 Reviews):
Write a Review and share your opinions!

Sunday, 1 July 2018  |

excellent service by ocean chandlery

Was this helpful to you?  Yes  /  No

This review has not been appraised.

perfect service
Monday, 14 May 2018  |

perfect service

Was this helpful to you?  Yes  /  No

This review has not been appraised.

Replacement Acrylics and seal for Bavaria 36 skylight
Sunday, 29 October 2017  |

The original main cabin skylight was very badly crazed and needed to be changed, but I was unsure whether I could do it and was initially afraid to order a replacement incase it didn't fit. As it happened it fitted a treat and with a little help from "U Tube" to figure out how the little black plastic cover bits over the hinge pin spacer came off, removing the hinged lid became an easy job. Removing the small screws that hold the two sides of the hinged lid together was achieved with judicious use of an impact driver, as the screws were initially obstinate. Once the side pieces had been separated, they were cleaned up, the new lens with seal supplied attached was slid into place and the side pieces resecured with the help of some gentle tapping with a rubber mallet.
I going to order another large hatch and one of the smaller ones plus some new side windows in due course as I now know they should be easy to fit.

Was this helpful to you?  Yes  /  No

1 of 1 people found this review helpful.

All perfect
Wednesday, 7 June 2017  |

Product perfect and delivery arrived in advance!!!!

i recommend Seateach

Was this helpful to you?  Yes  /  No

0 of 1 people found this review helpful.

Product Information

Replacing your hatch acrylic is easy - simply remove the lid, unscrew the frame and pull apart, the old acrylic will drop out and you can reassemble with your new acrylic.

Please note that depending on the age and condition of your hatch, it is not uncommon for the Joining Inserts to break as the frame pulls apart. We recommend having a replacement to hand so you do not get caught out halfway through the job. We will happily refund any unused Joiners.

Bavaria Low Profile Hatch Specifications

Model Style Hatch overall size Hatch cut-out size Radius
Bavaria L Large square hatch 556 x 556mm 486 x 486mm 42.5mm
Bavaria R Rectangular hatch 556 x 276mm 486 x 206mm 42.5mm
Bavaria S Small square hatch 330 x 330mm 260 x 260mm 42.5mm
Bavaria D 'D' hatch 568 x 361.5mm 498 x 291.5mm 42.5mm
