Lewmar - Standard portlights (for Bavaria Yachts)

Lewmar - Standard portlights (for Bavaria Yachts)

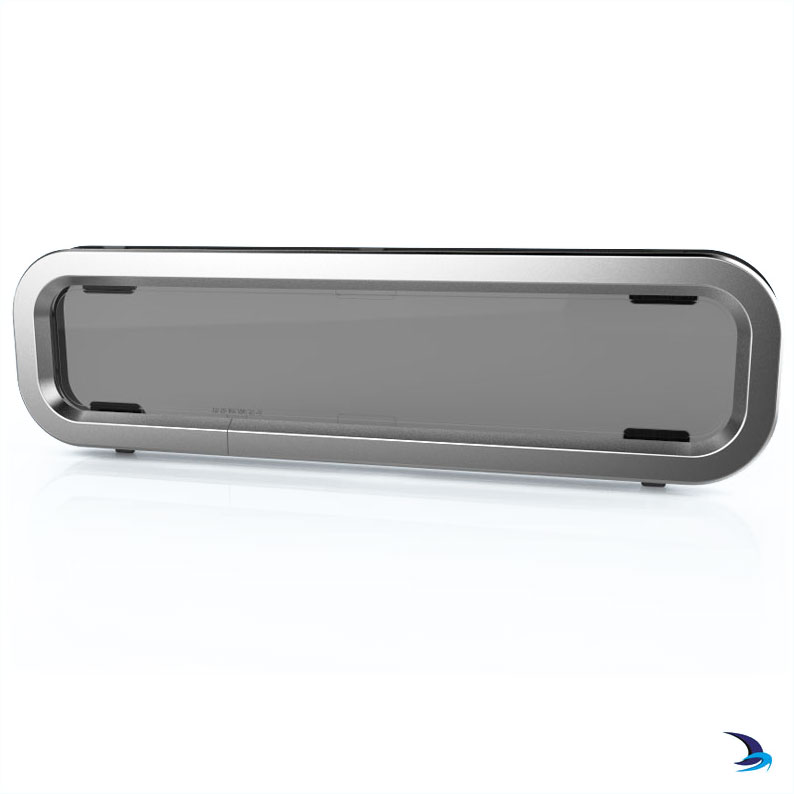

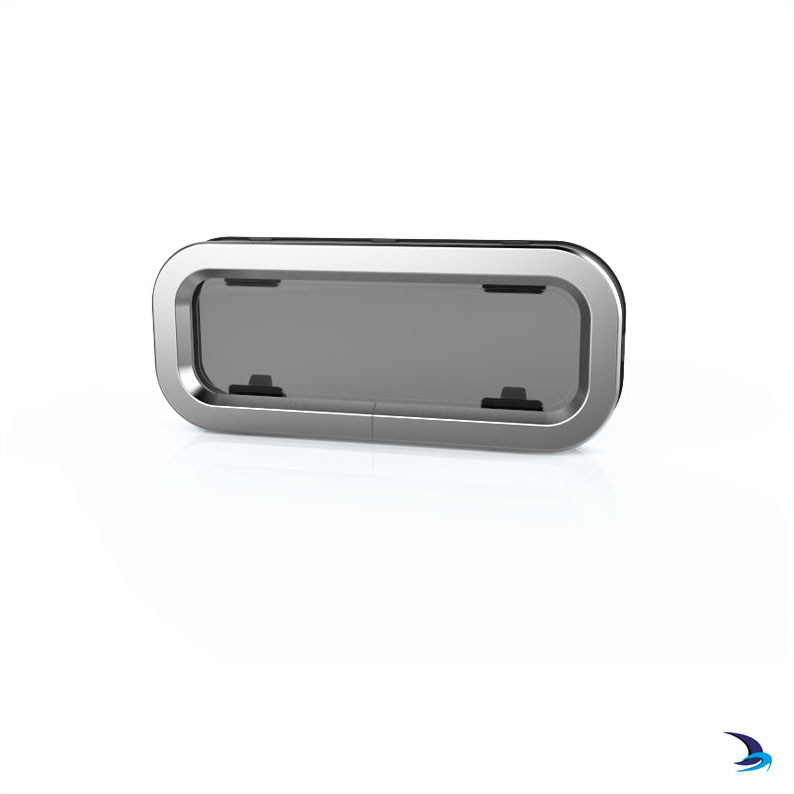

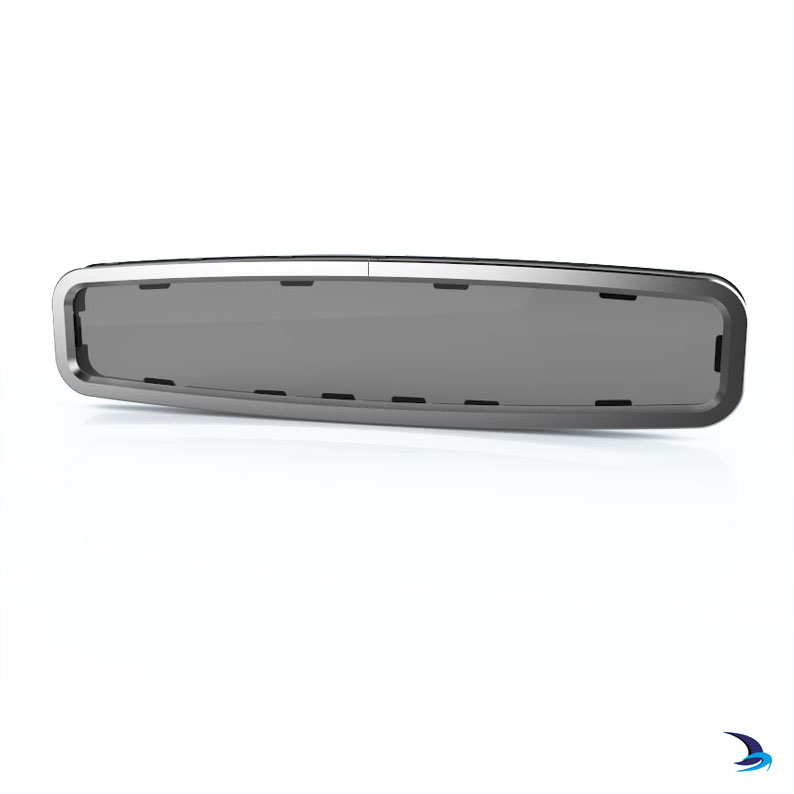

Portlight size: Bavaria ShortPortlight size: Bavaria LongPortlight size: Bavaria BarrelPortlight size: Fixed Elliptical

Lewmar

Portlight size:

Article Number:  30081500

Price:  £269.99
RRP:  £307.84
Save:  £37.85
(Inc. VAT @ 20%)
+

The range of Lewmar Standard Portlights made specifically for Bavaria yachts. Stylish and easy to both use and install. All sizes CE Approved for Category A, Areas 2, 3 & 4.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:

Be the first to Write a Review for this item!

  • ABS Plastic Trim
  • Can be installed with sealant or closed cell PVC tape
  • Cut out shape available from www.lewmar.com
  • Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame
  • Trim with clean styling
  • Complete with flyscreen (except sizes 4L and 4R)


  • Lewmar - Standard portlights

    Size Style Overall size Cut-out size*
    Width
    (X)
    Height
    (Y)
    Depth
    (Z)
    Radius
    (R)
    Width
    (X 1)
    Height
    (Y 1)
    Radius
    (R 1)
    0 Opening 323mm 176mm 4mm 62mm 303mm 156mm 52mm
    1 Opening 367mm 191mm 4mm 62mm 347mm 171mm 52mm
    1 RE Opening 367mm 191mm 4mm 95.5mm 347mm 171mm 85.5mm
    2 Opening 425mm 176mm 4mm 62mm 405mm 156mm 52mm
    3 Opening 449mm 191mm 4mm 62mm 429mm 171mm 52mm
    4 Opening 646mm 191mm 4mm 62mm 627mm 171mm 52mm
    4 L Opening 708mm 195mm 4mm 62mm 688mm 175mm 52mm
    4 R Opening 708mm 195mm 4mm 62mm 688mm 175mm 52mm
    5 Opening 449mm 264mm 4mm 62mm 429mm 244mm 52mm
    7 RE Opening 425mm 191mm 4mm 95.5mm 405mm 171mm 85.5mm

    • Minimum hull thickness 7mm
    • Maximum hull thickness 34mm
    • All portlights are supplied with 12 M5 x 25 screws for hull thickness 7-25mm
    • Porlights should be fitted to a flat surface ± 1mm

    Lewmar Hatch & Portlight Fitting Guide (PDF)
