Lewmar - VX2+ Vertical Windlass Kits

Lewmar - VX2+ Vertical Windlass Kits

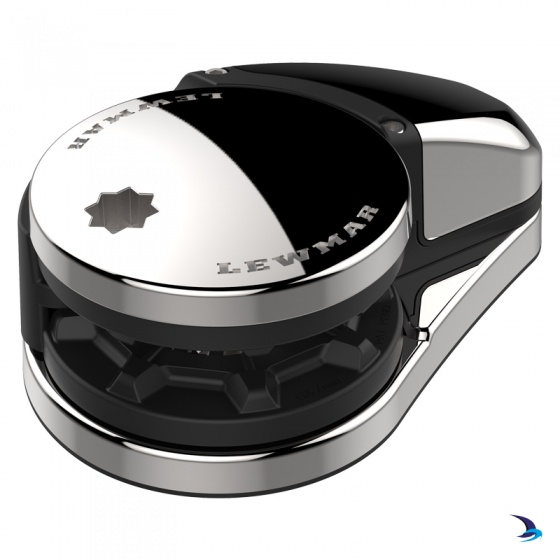

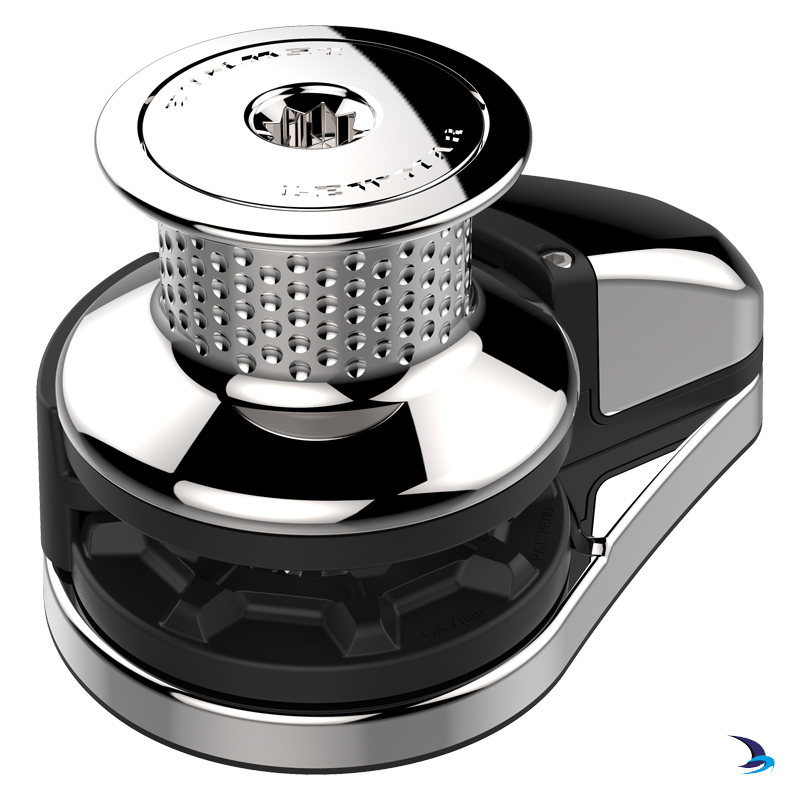

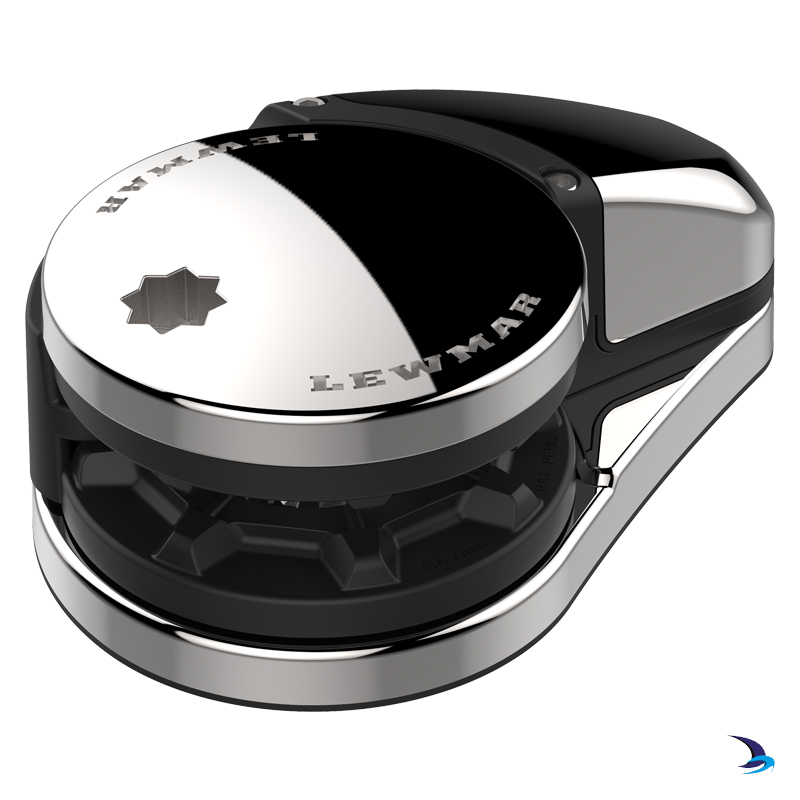

 Windlass model: Gypsy OnlyWindlass model: Gypsy Drum

Lewmar

Windlass model:
Chain Size:
Voltage:

Manufacturer #:  69120092

Price:  £859.99
RRP:  £1,021.00
Save:  £161.01
(Inc. VAT @ 20%)
+
Lewmar - Manual Recovery Kit for VX2/3 WindlassesLewmar - Manual Recovery Kit for VX2/3 Windlasses

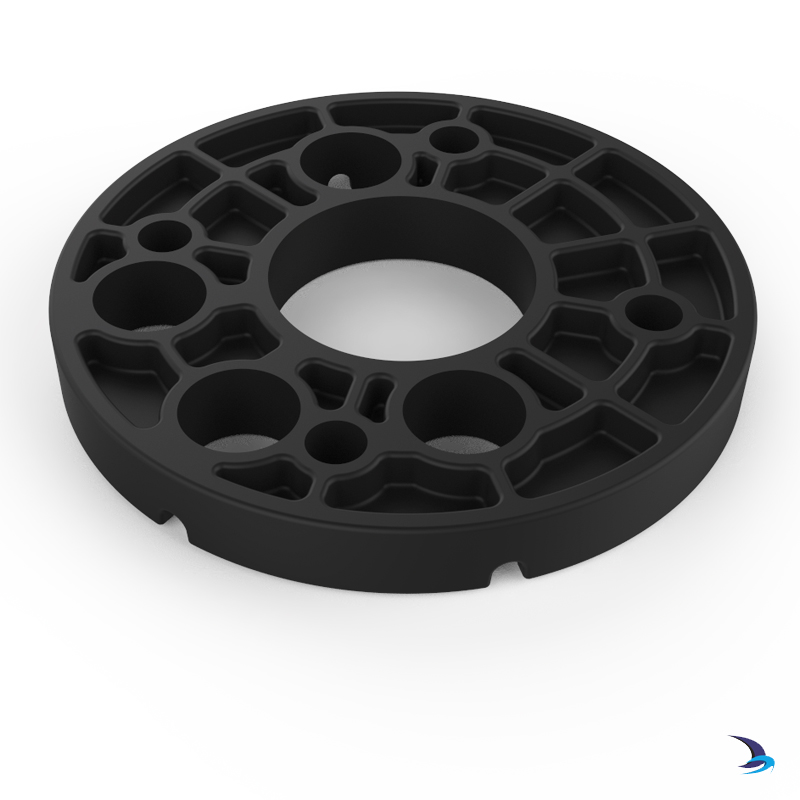

Lewmar - VX1/2/3 Windlass Deck Spacer KitLewmar - VX1/2/3 Windlass Deck Spacer Kit

Optimised for boats up to about 44ft, the VX2+ offers a maximum pull of 1025kg showing great performance and value. Built from the same principles of strength and durability as the V series, the VX2 units feature the same level of weight and performance optimisation as the VX1. The Hybrid Gypsy offers extended endurance under all conditions.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Lewmar VX2+ Windlass Features

  • 1000W Motor
  • Robust worm wheel gearbox
  • Stylish stainless steel and composite construction
  • IP67 cover as standard
  • Same footprint as V2/3 models

VX Vertical Windlass Featuring Hybrid Polymer Gypsy

Lewmar has developed a Patent Pending hybrid gypsy, which uses a metal anchor warp core together with a polymer chain wheel. This combination offers a lightweight and quiet solution that ensures smooth operation, while still offering the long-life durability of the traditional metal gypsy. The polymer chain wheel allows the anchor rode chain to bed-in, creating a jump free quieter operation, while the metal anchor warp core grips the warping during deployment and retrieval of the anchor rode such as with a conventional gypsy.

IP67 Rated Motor Gear Box

This will be the first ingress protection cover that Lewmar has offered on the small windlass and will be standard on all the new VX windlass range.

The new cover offers:

  • Silicone sealant free assembly
  • Orientation flexibility - can be set by the end user
  • Self-Certified to Ingress Protection level 67 to EN 60529
  • This new IP cover is not backwards compatible with any RMI40 gearbox and not available on the V1, CPX0 700W or CPX1 windlasses.
  • Motor sizes: 1000W or 1500W


Model Motor Power Voltage Max Pull Working Load Max Line Speed Normal Current Draw Circuit Breaker Approx Weight (Gypsy) Approx Weight (Gypsy Drum)
  (W) (V) (KG) (KG) (M/MIN) (A) (A) (KG) (KG)
VX2 700 12V 850 213 29 120 90 13.9 14.9
VX2 900 24V 850 213 29 60 50 13.9 14.9
VX2+ 1000 12V 1025 257 39 131 110 16.1 17.1
VX2+ 1000 24V 1025 257 39 74 90 16.1 17.1
VX3 1500 12V 1175 294 40 132 110 16.1 17.1
VX3 1500 24V 1175 294 40 70 90 16.1 17.1

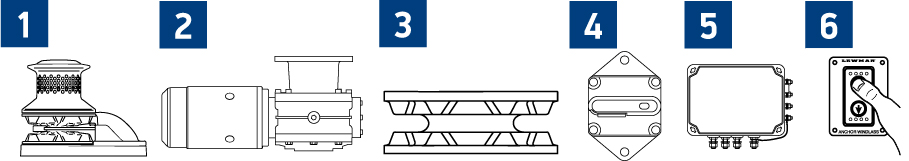

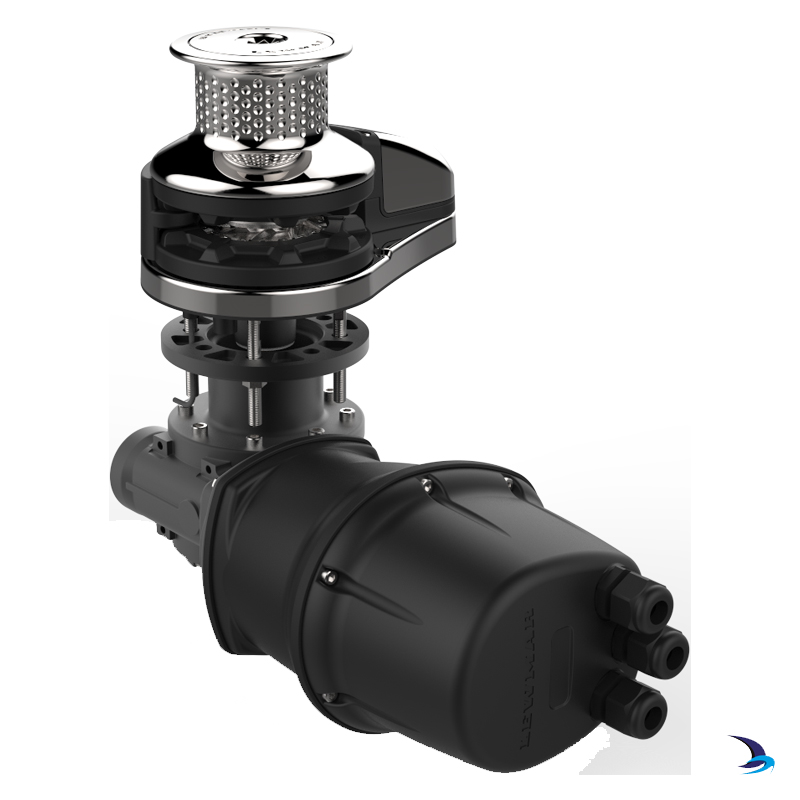

Complete extended windlass kit includes -

Deck unit, motor gearbox, gypsy, circuit breaker, solenoid and rocker switch.



VX2 Optional Accessories

Deck Spacer Kits

The minimum recommended deck thickness for installation of a VX2 unit is 40mm. A 15mm deck spacer is available for decks with a thickness of 10-25mm. This can be added above.

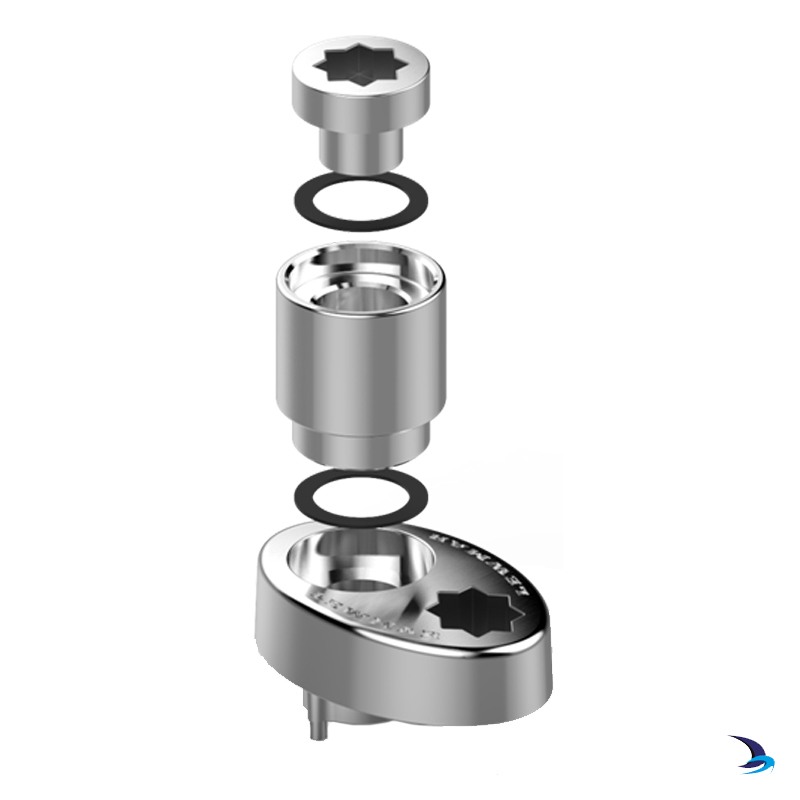

Manual Recovery Kits

Manual recovery kits are available for the VX2 and can be added above. Please ensure you select the correct option for gypsy only or gypsy drum.
