Wichard - Self-Locking Allen Head D Shackles

Wichard - Self-Locking Allen Head D Shackles

Wichard



Manufacturer #:  1303

£12.49    (Inc. UK VAT @ 20%)(£10.41 Exc. VAT)

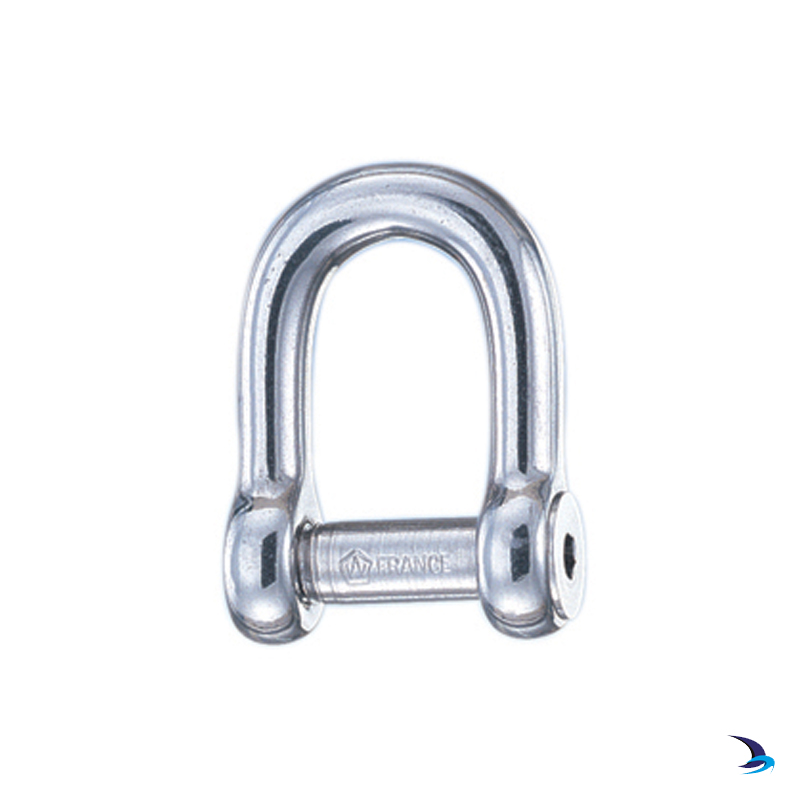

Self-locking allen head shackles.

The elasticity of the shackle's body locks the pin’s position into one or other of its small indentations. There is no need to worry about it accidentally coming loose due to vibrations.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
*
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Features

  • Head of shackle pin locked into one of the notches
  • The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
  • Avoids accidental release due to vibrations
  • Outstanding working and breaking loads

Applications

  • Ideal to link chain and anchor
  • On the halyard, avoids to damage the sails
  • To be used when the clutter is reduced

Material

  • Grade 316L stainless steel


Wichard Self-Locking Allen Head D Shackles Specifications

Part Length Material Ø Working load Break load Weight
1303 19mm 6mm Ø 600kg 1,600kg 22g
1304 26mm 8mm Ø 960kg 2,700kg 53g
1305 33mm 10mm Ø 1,440kg 4,300kg 99g
1306 39mm 12mm Ø 2,080kg 5,500kg 187g
