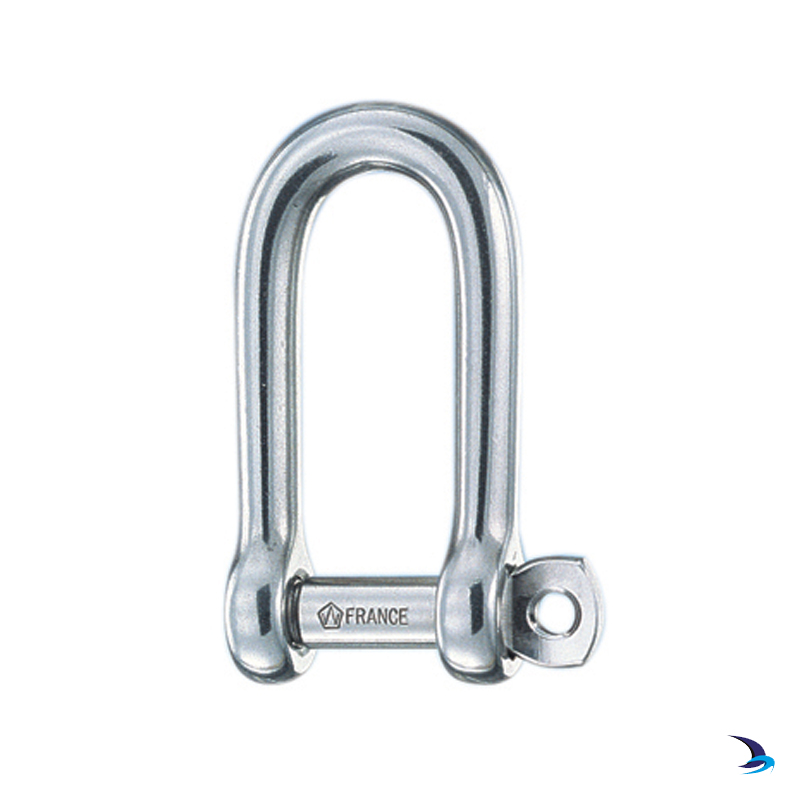

Wichard - Self-Locking Long D Shackles

Wichard - Self-Locking Long D Shackles

Wichard

Size:

Manufacturer #:  1211

Price:  £5.29(Inc. VAT @ 20%)
+

Self-locking standard pin shackles 'patented'.

At the thumb screw end, the elasticity of the shackle's body locks the pin’s position into one or other of its small indentations. There is no need to worry about it accidentally coming loose due to vibrations.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Features

  • Head of shackle pin locked into one of the notches
  • Avoids accidental release due to vibrations
  • Outstanding working and breaking loads

Applications

  • Standard shackle applications where more length is required
  • Attachment applications: blocks, head...

Material

  • Grade 316L stainless steel


Wichard Self-Locking Long D Shackle Specifications

Part Length Material Ø Working load Break load Weight
1211 22m 4mm Ø 320kg 700kg 8g
1212 29mm 5mm Ø 400kg 1,000kg 17g
1213 33mm 6mm Ø 600kg 1,600kg 27g
1214 45mm 8mm Ø 1,000kg 2,700kg 66g
1215 55mm 10mm Ø 1,520kg 4,300kg 128g
