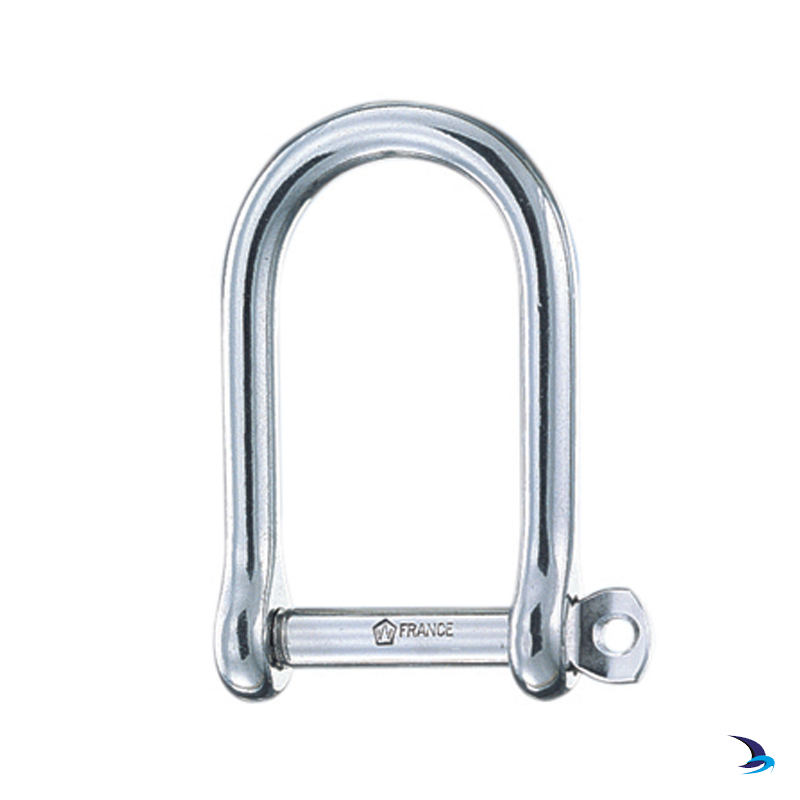

Wichard - Self-Locking Wide Opening D Shackles

Wichard - Self-Locking Wide Opening D Shackles

Wichard

Size:

Manufacturer #:  1262

Price:  £9.69(Inc. VAT @ 20%)
+

Self-locking standard pin shackles 'patented'.

At the thumb screw end, the elasticity of the shackle's body locks the pin’s position into one or other of its small indentations. There is no need to worry about it accidentally coming loose due to vibrations.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Features

  • Head of shackle pin locked into one of the notches
  • Avoids accidental release due to vibrations
  • Outstanding working and breaking loads

Applications

  • For applications where a wide opening shackle is required

Material

  • Grade 316L stainless steel


Wichard Self-Locking Wide D Shackle Specifications

Part Length Material Ø Working load Break load Weight
1262 36mm 5mm Ø 256kg 1,100kg 16g
1263 42mm 6mm Ø 320kg 1,500kg 27g
1264 57mm 8mm Ø 768kg 2,700kg 67g
1265 72mm 10mm Ø 1,280kg 4,000kg 127g
