Wichard - Self-Locking Bow Shackles

NEW

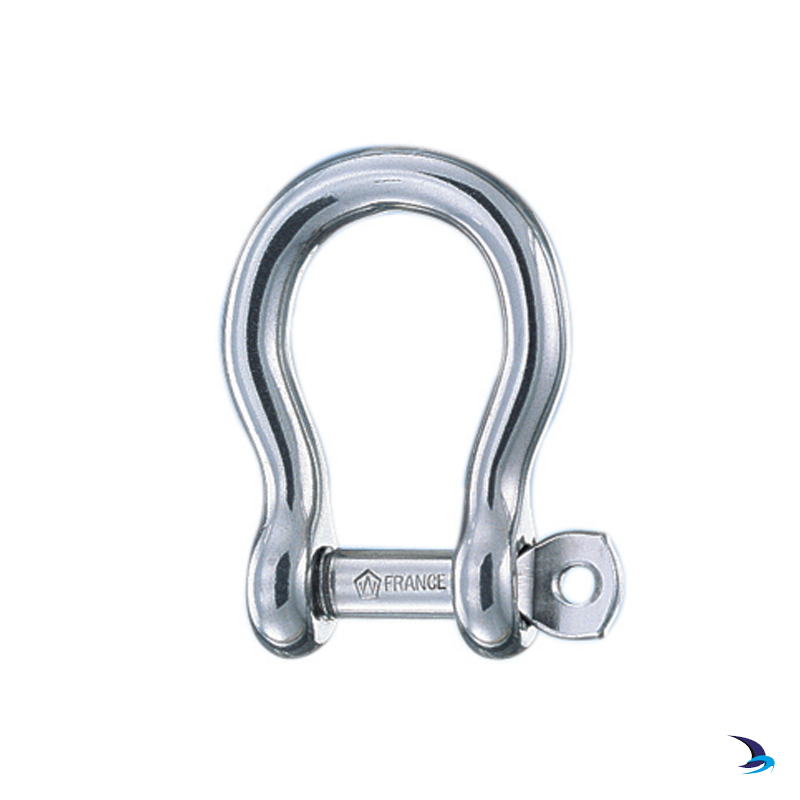

Wichard - Self-Locking Bow Shackles

Wichard

Size:

Manufacturer #:  1241

Price:  £5.49(Inc. VAT @ 20%)
+

Self-locking standard pin shackles 'patented'.

At the thumb screw end, the elasticity of the shackle's body locks the pin’s position into one or other of its small indentations. There is no need to worry about it accidentally coming loose due to vibrations.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Features

  • Head of shackle pin locked into one of the notches
  • Avoids accidental release due to vibrations
  • Outstanding working and breaking loads

Applications

  • To be used when ample room is required
  • Possibility to attach several lines or cables

Material

  • Grade 316L stainless steel


Wichard Self-Locking Bow Shackle Specifications

Part Length Material Ø Working load Break load Weight
1241 18mm 4mm Ø 320kg 700kg 9g
1242 23mm 5mm Ø 400kg 1,000kg 17g
1243 28mm 6mm Ø 600kg 1,500kg 30g
1244 37mm 8mm Ø 1,000kg 2,700kg 68g
1245 47mm 10mm Ø 1,520kg 4,300kg 137g
1246 55mm 12mm Ø 2,080kg 6,000kg 233g
1247 70mm 16mm Ø 3,200kg 10,000kg 540g
1248 80mm 20mm Ø 4,000kg 15,000kg 1,050g
